Stop Tuning by AFR Alone: Lambda, E85 Content and Wideband Errors Explained

A wideband reading of 11.8 AFR can look safe, rich, lean or completely meaningless depending on the fuel scale behind the number. That is why experienced tuners increasingly discuss commanded and measured fueling in lambda, especially on flex-fuel, E85, race-fuel and mixed-fuel combinations.

The wideband is one of the most useful tools on a modified vehicle, but it is not magic. A bad exhaust leak, a misfire, incorrect 0–5-volt scaling, weak grounds, the wrong fuel display setting or an aging sensor can all produce a believable number that points the diagnosis in the wrong direction.

This guide explains what lambda means, why gasoline AFR can be confusing on ethanol, how flex-fuel content changes the calculation and what to verify before trusting the number in a datalog.

Lambda Is the Fuel-Independent Number

Air-fuel ratio compares the mass of air to the mass of fuel. The problem is that the stoichiometric ratio changes with fuel chemistry. Gasoline is commonly represented near 14.7:1, while pure ethanol is commonly represented near 9.0:1. Pump E85 is not pure ethanol and its actual blend can change, so its stoichiometric value changes with it.

Lambda removes that fuel-specific scale:

Lambda = measured AFR ÷ stoichiometric AFR

• Lambda 1.00 means stoichiometric for the fuel currently being burned.
• Lambda below 1.00 means richer than stoichiometric.
• Lambda above 1.00 means leaner than stoichiometric.

Because lambda is normalized, the same target can be discussed across different fuels. For example, lambda 0.80 represents the same relative richness whether the engine is on gasoline, ethanol or a changing blend.

The Same Lambda Can Display Very Different AFR Numbers

At lambda 0.80, a gasoline-scale calculation using 14.7 stoich displays approximately 11.76 AFR:

14.7 × 0.80 = 11.76 AFR

Using pure ethanol at 9.0 stoich, the same lambda target displays 7.20 AFR:

9.0 × 0.80 = 7.20 AFR

Neither number is automatically safer or richer than the other. They are two display scales describing the same lambda. This is why a gauge that remains configured for gasoline AFR can show familiar-looking numbers even when the tank contains ethanol. The display may be convenient, but it does not mean the fuel in the tank has gasoline stoichiometry.

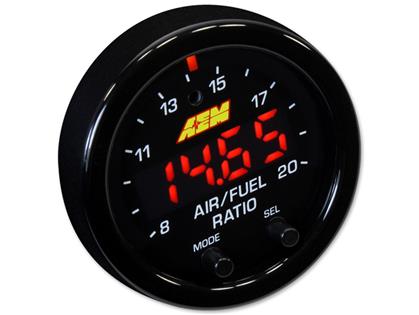

AEM's X-Series wideband controllers can display lambda and provide fuel-specific AFR output ranges. That flexibility is useful, but the cleanest way to compare logs across gasoline and ethanol is still to work in lambda. See the AEM X-Series technical overview for the controller's display and output options.

Why Pump E85 Requires Actual Ethanol-Content Data

“E85” at the pump is a product name, not a promise that every tank contains exactly 85 percent ethanol. Seasonal blending, regional supply and the fuel already in the tank can all change the final mixture. A vehicle calibrated for a fixed ethanol percentage can therefore be wrong after a normal fill-up.

A proper flex-fuel system uses an ethanol-content sensor and a calibration designed to blend the required strategies as content changes. Depending on the ECU and build, that can include:

• Fuel mass and stoichiometric calculations
• Cold-start and cranking enrichment
• Ignition timing
• Boost, torque and load limits
• Fuel-pressure and injector-capacity safeguards

Haltech's official flex-fuel tuning guide describes flex fuel as operation across a varying ethanol and gasoline blend, not one fixed AFR number. For an SMG-supplied sensor option, see the AEM Ethanol Content Flex Fuel Sensor Kit.

What a Wideband Actually Measures

A wideband oxygen sensor responds to residual oxygen in the exhaust stream. The controller interprets the sensor signal and reports lambda, then a gauge or logger may convert that lambda into an AFR scale selected by the user.

That distinction matters because the sensor does not know what fuel you intended to put in the tank. It also does not know whether oxygen reached the sensor because the cylinder was genuinely lean, because fresh air entered through an exhaust leak or because a misfire pushed unused oxygen into the exhaust.

Five Ways a Trustworthy-Looking Reading Can Be Wrong

1. An Exhaust Leak Upstream of the Sensor

A leak can pull fresh air into the exhaust and add oxygen near the sensor. The wideband can report lean even when the combustion mixture itself is not lean. Inspect header flanges, collector connections, slip joints, V-bands, sensor bungs and nearby welds before chasing the tune.

2. A Misfire

A misfiring cylinder can leave oxygen unconsumed. The wideband sees that oxygen and may report lean while raw fuel is also passing through the cylinder. If the engine is breaking up, do not immediately add fuel based only on the wideband. Review plugs, coils, injector operation, fuel pressure, compression and the rest of the log.

3. Incorrect Analog Scaling

Many controllers provide a 0–5-volt output. The logging software must use the exact transform for that controller and output mode. A formula for gasoline AFR is not interchangeable with a lambda output or an E85-specific output. A ground offset between the controller and logger can also shift the reading.

When supported, CAN-based data can reduce analog scaling and ground-reference problems. For analog inputs through an HP Tuners interface, the HP Tuners Pro Link+ Cable for MPVI2+ and MPVI3 provides the physical input path, but the channel still needs the correct transform.

4. The Gauge and Logger Are Using Different Scales

The gauge may be displaying gasoline AFR while the logger records lambda, or the gauge may be configured for one fuel while the analog transform assumes another. Before comparing numbers, confirm the units and scale on both devices.

5. Sensor Age, Contamination or Thermal Stress

Wideband sensors are wear items. Leaded fuel, oil, coolant, silicone contamination, condensation, excessive heat and thermal shock can shorten sensor life or slow its response. AEM specifically notes that sensor life depends on contamination and thermal or mechanical stress. If a known-good combination suddenly develops slow, unstable or implausible readings, sensor condition belongs on the diagnostic list.

SMG stocks the AEM Bosch LSU 4.9 UEGO Replacement Sensor for supported AEM applications.

A Clean Wideband and Flex-Fuel Logging Workflow

1. Verify the fuel. Test ethanol content or confirm the sensor reading before assuming the tank blend.
2. Verify the hardware. Confirm the controller, sensor part number, output mode and required calibration procedure.
3. Inspect the exhaust. Fix leaks before the sensor and confirm the bung location is suitable for the application.
4. Confirm electrical integrity. Check power, grounds, sensor heating and the logger's reference ground.
5. Match the data channel. Use the correct CAN channel or exact 0–5-volt transform for the controller's configured output.
6. Log commanded and measured lambda together. A measured value without the ECU's commanded target lacks context.
7. Log the supporting system. Include ethanol content, fuel pressure, injector duty cycle, trims, boost, throttle, timing, knock, battery voltage and relevant temperatures.
8. Validate under repeatable load. Use the same fuel, warm-up procedure, gear and test method when evaluating a change.

Choose the Right Wideband for the Job

For a conventional gauge installation, the AEM X-Series Wideband UEGO AFR Sensor Controller Gauge provides a visible display plus logging outputs. On supported newer vehicles, the AEM X-Series OBDII Wideband UEGO Gauge can place wideband data into the vehicle's OBDII stream for compatible tuning software.

The hardware is only part of the answer. Sensor placement, wiring, scaling, fuel-system capacity and calibration quality determine whether the final data is useful.

Fueling Data Must Match the Whole Combination

A correct lambda reading cannot compensate for a fuel pump losing pressure, undersized injectors, voltage drop, poor injector data or an ECU that is closing the throttle to protect the engine. Our previous guide, A 1000cc Injector Is Not Always a 1000cc Injector, explains why pressure, fuel type and injector characterization must be evaluated together.

For repeatable testing, see Why Your Dyno Number Changed. If the vehicle requires controller access before calibration, review Why Newer Performance Cars Are Harder to Tune.

SMG Parts and NTHP Installation, Diagnosis and Tuning

SMG Speed Shop can supply wideband controllers, replacement sensors, flex-fuel sensors, HP Tuners interfaces and logging accessories, along with the pumps, injectors, regulators, lines and supporting fuel-system hardware required for the complete combination.

North Texas High Performance can handle wideband and flex-fuel sensor installation, fuel-system diagnosis, HP Tuners calibration, flex-fuel setup and repeatable validation on our Mainline ProHub dyno in Justin, Texas. A dyno number is useful, but a clean log that shows the engine is receiving the commanded fuel under load is what protects the build.

Shop the linked components through SMG Speed Shop, or contact North Texas High Performance at 940-648-9393 for installation, diagnosis and tuning.
