Your Crankshaft Twists Every Time a Cylinder Fires: Why Harmonic Dampers Matter More as Power Climbs
Horsepower gets the headline. Boost gets the attention. The cam, heads, fuel system and dyno graph get talked about for weeks. Meanwhile, one of the hardest-working parts on the front of the engine is often treated like a pulley with timing marks.
That is a mistake.
Performance Racing Industry’s August 2026 crankshaft feature is a useful reminder of what is happening inside a serious engine. Modern racing crank manufacturers are dealing with engines that make enormous cylinder pressure and operate across wide rpm ranges, and PRI specifically calls out torsional vibration as power rises. The article also describes a failed crankshaft where metal transfer between the crank snout and damper showed that the two parts had been moving against each other before the crank broke near the snout.
The takeaway is not that every modified engine needs the biggest damper you can buy. It is that crankshaft damping, fit, drive ratio and installation are part of the engine combination, just like injector size or valve-spring pressure.
Balanced is not the same thing as damped
An engine can have a properly balanced rotating assembly and still experience torsional vibration. Balance deals with mass and the forces created as the crankshaft, rods and pistons move. Torsional vibration is different: the crankshaft elastically twists and rebounds as individual cylinders fire and the rotating assembly accelerates and decelerates.
Think of the crankshaft less like a perfectly rigid bar and more like a very stiff spring. Every combustion event applies torque to one section of the crank. The crank then transmits that load through the rest of the rotating assembly. At certain engine speeds, those pulses can line up with natural frequencies in the system and increase the twisting motion.
That is what a harmonic damper is there to control. Its job is not simply to hold the accessory pulley. It is there to absorb and reduce crankshaft torsional vibration before that energy repeatedly loads the crank, timing drive and attached components.
Why higher power changes the conversation
As output climbs, cylinder pressure rises. Higher rpm increases the number of load cycles per minute. A supercharger can add another significant drive load to the crank snout. Aggressive launches, rapid rpm changes and long pulls can expose the system to conditions far beyond what a stock commuter engine sees.
PRI’s current crankshaft coverage makes two other points that matter here. First, modern high-horsepower crankshaft development increasingly focuses on resisting torsional motion. Second, crank failures are often not isolated material failures. Detonation, lubrication problems, incorrect clearances, component mismatch and installation issues can all contribute.
That is why a damper should not be treated as a cosmetic upgrade or selected only by diameter.

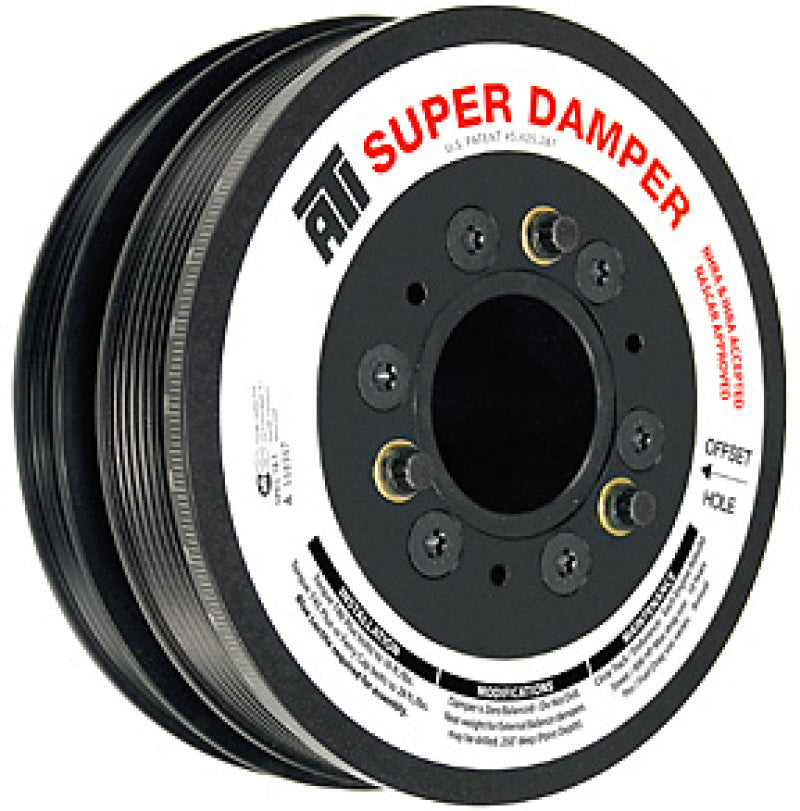

What an ATI Super Damper is actually doing
ATI’s Super Damper uses an elastomer-based design with a steel inertia weight contained inside the damper shell. Depending on the configuration, the inertia weight uses multiple machined grooves with application-selected elastomer rings. ATI says its dampers are tuned for specific applications, are rebuildable, use replaceable hubs and exceed SFI 18.1 requirements.
For a high-performance build, that application-specific approach matters. Engine architecture, crankshaft material and geometry, rpm range, accessory drive, supercharger drive and intended use can all affect the right damper configuration.
SMG carries ATI dampers for a wide range of platforms. For LS-powered street and performance cars, one example is the ATI 7.48-inch aluminum damper for LS1/LS2/LS3/LS6/L76 Corvette, G8 and related applications. For Ford builds, the ATI OEM-size Coyote 5.0L damper retains the factory-size drive arrangement while adding a performance damper assembly.
Overdrive dampers change more than one thing
On supercharged combinations, the crank damper can also be part of the blower-speed strategy. That makes pulley selection especially important.
SMG currently carries an ATI 15% overdrive Coyote 5.0L damper as well as an ATI 10% overdrive Hellcat 6.2L damper. Those are not interchangeable concepts with an OEM-size damper. Increasing crank drive diameter can increase supercharger speed and change accessory-drive behavior, so the rest of the combination has to be checked before making that move.
That means verifying:
- supercharger maximum rotor or impeller speed;
- actual boost target and pulley ratio;
- belt length, wrap, tension and alignment;
- fuel-system capacity at the new airflow level;
- charge-air and engine-cooling capacity;
- calibration for the resulting airflow and torque;
- and whether the crank drive needs to be pinned or otherwise secured for the application.
A bigger lower pulley can be an effective way to change a supercharger ratio, but it is not free horsepower. The blower, fuel system, cooling system and calibration all have to support what the new ratio is asking the engine to do.
The crank snout and damper fit deserve respect
One of the most useful details in PRI’s August crankshaft story is the example of metal transfer between a damper and crank snout. Movement at an interface that is supposed to be properly secured is a warning sign. Once components begin fretting or moving against each other, the snout, keyway, fastener and damper hub can all be exposed to abnormal loading.
Installation details matter. The correct interference fit, crank bolt or installation hardware, key or pin arrangement, pulley alignment and manufacturer torque procedure should be treated as engineering requirements, not suggestions. A damper should be installed with the proper tool and procedure rather than forced on with impacts or improvised methods.
ATI publishes application-specific installation guides for LS/LT, HEMI, diesel and other platforms, including dedicated crank-pin tooling for applications where pinning is part of the combination. Use the instructions for the exact damper and engine, especially when a supercharger drive is involved.
When does a performance damper make sense?
There is no single horsepower number where every engine suddenly requires the same damper. A better way to look at it is by use case. A performance damper deserves consideration when the engine is being rebuilt for higher rpm, cylinder pressure is rising substantially, the car sees repeated drag or road-course use, a supercharger drive ratio is changing, the factory damper is aged or deteriorating, or the rotating assembly and accessory drive have moved far away from the stock combination.
For an existing Hellcat that simply needs an OEM-drive-size performance damper, SMG also carries the ATI OEM-drive-size 2015+ Hellcat 6.2L Super Damper. The point is to match the damper and drive arrangement to the build rather than assuming every modified car needs an overdrive setup.
Dyno data helps validate the whole system
A damper does not replace good calibration, fuel delivery or engine data. In fact, PRI’s crankshaft feature specifically identifies detonation and lubrication problems as major contributors to broken parts. If the tune is allowing knock, the fuel system is losing pressure, or oil supply is unstable, a premium crankshaft and damper cannot make those problems disappear.
That is why the finished combination should be validated under load. As we covered in our recent guide to the seven data channels worth watching on a high-horsepower dyno pull, boost, lambda, fuel pressure, timing activity, temperatures and system voltage can tell you far more than the peak number at the top of the graph.
For forced-induction builds, the same systems approach applies to pulley changes. Our 2026 F-150 ProCharger guide is another good example of why a complete combination matters more than chasing a single advertised gain.
Build the engine as a system
The best high-horsepower builds are rarely the ones with the longest parts list. They are the ones where the parts actually agree with each other.
Crankshaft. Damper. Pulley ratio. Supercharger speed. Fuel system. Cooling. Calibration. Belt drive. Fasteners. Data. They are all connected.
Building an LS, Coyote, HEMI, Hellcat or other high-output combination? Shop ATI crankshaft dampers and drive components at SMG Speed Shop, or contact the SMG team for help matching the correct part to your engine, accessory drive and power goal. For installation, calibration and load testing in North Texas, North Texas High Performance can take the combination through final validation on the Mainline ProHub dyno.
Technical references: Performance Racing Industry, “Proven Commodity: Racing Crankshafts,” August 1, 2026; ATI Racing, Super Damper Technology; ATI application and installation guides.
