Why Ford’s Supercharged Coyotes Run Colder Spark Plugs: Heat Range and Gap Explained
A supercharger gets the attention. The spark plugs usually do not. But Ford Racing’s own Coyote guidance is a good reminder that once cylinder pressure and temperature go up, the plug becomes part of the power-adder combination rather than a generic maintenance item.
For several supercharged Coyote applications, Ford specifies a colder heat range and a tighter, verified plug gap. The exact plug and gap depend on the engine generation and application, but the engineering lesson is broader: boost changes the environment the spark plug has to survive.
What a “colder” spark plug actually means
Heat range does not describe spark intensity, spark voltage or how “hot” the spark itself is. It describes how quickly the firing end of the plug transfers heat into the cylinder head.
NGK explains that a colder plug has a shorter heat path and sheds firing-end heat more quickly, while a hotter plug retains more heat. The goal is a useful operating window: hot enough to burn off deposits and resist fouling, but cool enough to avoid overheating and pre-ignition.
That is why simply installing the coldest plug available is not a performance upgrade. A plug that is too cold can carbon-foul and misfire during low-load use. A plug that is too hot can overheat, accelerate electrode wear and become a potential source of pre-ignition under heavy load.
Why boost changes the plug’s job
Supercharging and turbocharging increase the mass of air trapped in the cylinder. Once the engine is under boost, cylinder pressure and combustion temperature rise. NGK specifically notes that forced-induction engines may require a colder heat range because increasing manifold pressure raises cylinder pressure and temperature.
The ignition system also has to fire across the plug gap in that higher-pressure environment. As cylinder pressure rises, the voltage required to ionize the gap rises too. That is one reason a combination that idles perfectly can develop a high-load misfire only after boost comes in.
Plug gap is therefore not something to assume is correct straight out of the box. The right gap is application-specific and should follow the engine, ignition system, fuel, boost level and calibration guidance for the actual combination.
Ford’s own Coyote numbers show the tradeoff
Ford Racing’s M-12405-M50A cold spark plug set is recommended for 2011-2021 Mustang GTs running aftermarket superchargers. Ford describes it as one heat range colder than the stock plug and recommends a 0.035-inch gap for the supported supercharged applications. Ford also explicitly says the plug gap must be verified before installation.
For a newer and different Coyote application, Ford’s M-12405-50VDE set is for 2021-2026 F-150 5.0L engines with Variable Displacement. Ford calls for a colder HR8 heat range and a 0.032-inch gap in supported supercharged applications, again with an explicit instruction that the plugs must be gapped.
Those two examples are important because they are not interchangeable. The older Mustang plug set does not fit every later Coyote, and Ford specifically says the VDE F-150 plug does not fit the Mustang Coyote. Heat-range numbering also varies by manufacturer, so “one step colder” should be selected by the correct cross-reference, not by comparing numbers across brands.
Too hot versus too cold
A plug that runs too hot can push the firing end toward an unsafe temperature range. NGK notes that overheating can cause rapid electrode wear and may contribute to pre-ignition, where the mixture lights from a hot spot before the commanded spark event. That is a very different problem from ordinary detonation and can become destructive quickly.
Go too cold, though, and the firing end may not reach its self-cleaning temperature during normal street use. Carbon deposits can build on the insulator and create misfires. That is why a street-driven 700-hp car, a drag-only combination and a road-course car may not all want the same plug even if the engines look similar on a parts list.
Why a tighter gap can help under boost
Reducing the gap can lower the voltage demand required to initiate the spark in a high-pressure cylinder. That can improve ignition stability when boost rises, especially if the combination is already near the limits of its coils, plug gap or electrical system.
But “smaller is always better” is the wrong lesson. Too little gap can reduce the size and exposure of the initial flame kernel. The correct move is to use the gap recommended for the specific hardware and calibration, then diagnose the system if it still misfires instead of blindly closing the gap farther.
When installing plugs on a boosted engine, verify the actual gap with a proper gauge, use the correct plug for the application, inspect the porcelain and electrodes, and torque the plugs to the correct specification. Do not use the ground strap as a lever against the center electrode.
Use the data when a boosted car starts breaking up
If a car develops a high-load breakup, plugs are only one possible cause. Coil condition, battery voltage, commanded and measured lambda, fuel pressure, boost, intake-air temperature, ignition timing and knock response all matter. That is why the symptom should be logged under the conditions where it occurs rather than treated as a parts-cannon problem.
We covered that process in Your Dyno Sheet Is Only Half the Story: 7 Data Channels That Can Save a High-Horsepower Build. A dyno number tells you what the car made. The log can tell you why the pull was clean, why it broke up or what changed when the combination got hot.
Build the ignition system for the actual combination

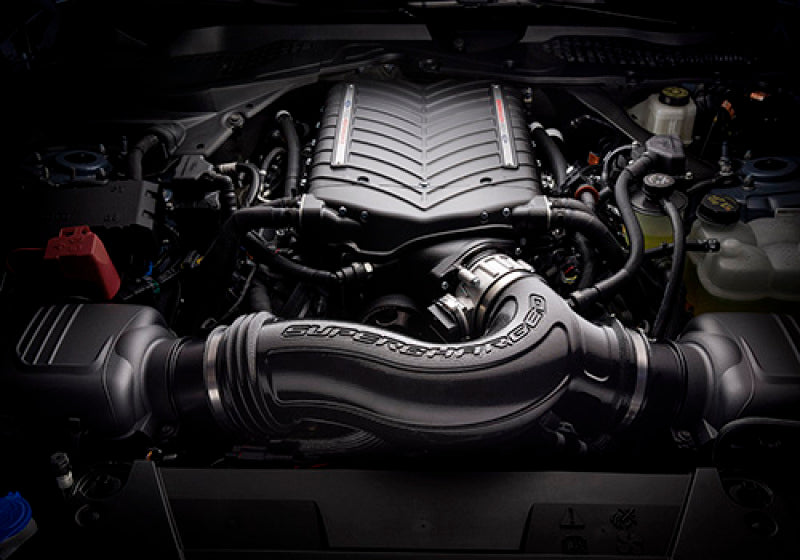

SMG currently carries the Ford Racing M-12405-M50A cold spark plug set for its supported 2011-2021 Mustang GT supercharged applications, as well as the Ford Racing 2024+ Mustang GT/Dark Horse supercharger kit. The S650 kit is a separate application, so do not assume the older plug part number belongs in a 2024+ Mustang simply because both are Coyote-powered.
The right process is simple: identify the exact engine and power-adder combination, verify the correct plug and heat range, set the specified gap, and then validate the car under load. If you need help matching the supporting hardware to your build, contact SMG Speed Shop. For installation, calibration, diagnostics and controlled load testing in North Texas, North Texas High Performance can evaluate the combination on its Mainline ProHub dyno.
Technical references: Ford Racing M-12405-M50A and M-12405-50VDE application guidance; NGK Spark Plug Basics and Understanding Spark Plug Heat Range. Always follow the current plug, gap, torque and calibration requirements for the exact vehicle and hardware being serviced.
