HP Tuners Opens Direct OBD-II Tuning for the 815-HP Mustang GTD: No Controller Upgrade Required
The Ford Mustang GTD is already one of the most extreme factory Mustangs ever sold, and the aftermarket just gained a major new way to work with it. HP Tuners announced support for the 2025-2026 Mustang GTD's ECM and TCM, with supported controllers accessible directly through the OBD-II port. According to HP Tuners, no additional cable or controller-upgrade service is required for the supported GTD application.
That detail matters. Modern performance cars increasingly use locked, encrypted, or gateway-protected controllers, so tuning access can require shipping a module out, installing an upgraded controller, or using application-specific hardware before calibration work can even begin. HP Tuners' new GTD support removes that extra controller-upgrade step for this particular platform and gives professional tuners a much more familiar workflow.
What HP Tuners Added for the 2025-2026 Mustang GTD

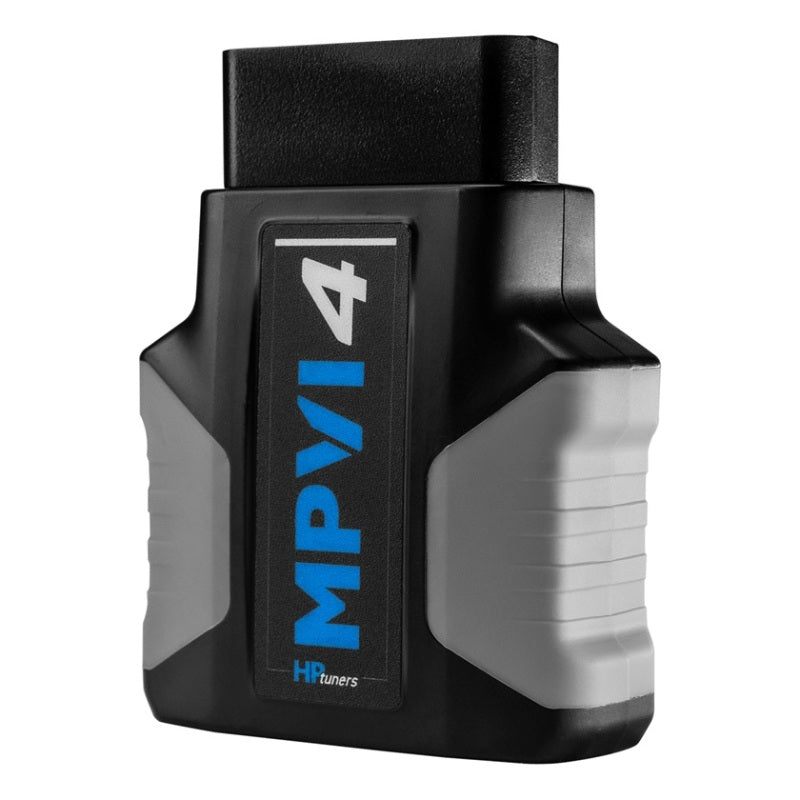

HP Tuners' August 25, 2026 announcement lists support for both the engine control module and transmission control module on 2025-2026 Ford Mustang GTD models. With an HP Tuners MPVI4 and the latest VCM Suite software, supported GTD controllers can be read, edited, written, scanned, and data-logged through the vehicle's OBD-II connection.
HP Tuners currently lists the licensing requirement as 4 Universal Credits for the ECM and 6 Universal Credits for the TCM. In other words, a shop planning to license both modules should account for 10 Universal Credits total. SMG also carries MPVI4 packages with 4 Universal Credits and 6 Universal Credits for customers building out the hardware and credit combination that fits their project.
HP Tuners also says remote tune delivery is supported through its TDN system with an RTD4 device. That can be useful when the calibrator and vehicle are in different locations, although the vehicle still needs to be mechanically sound and properly instrumented before meaningful calibration work begins.
Why This Is a Big Deal on an 815-HP Factory Mustang
Ford's current specifications put the Mustang GTD at 815 horsepower and 664 lb-ft of torque from its supercharged 5.2-liter V8, with a claimed 202-mph top speed. Ford's current GTD page also lists a 6:40.835 Nürburgring lap. This is not a conventional Mustang GT with a body kit. The GTD combines a dry-sump supercharged V8, rear transaxle, active aerodynamics, carbon-ceramic brakes, race-derived suspension, and extensive carbon-fiber construction.
That also means calibration changes deserve more discipline, not less. When a vehicle starts with this much power and this much integrated control logic, the goal should not be to chase a bigger peak number while ignoring fuel delivery, charge temperature, torque management, transmission behavior, knock activity, lambda, fuel pressure, or component protection strategies.
The new tuning access is valuable because it lets qualified calibrators see and work with the data instead of guessing. VCM Scanner can be used to monitor the channels that matter during a controlled test, while the calibration side of VCM Suite gives access to supported ECM and TCM parameters for the application.
Direct OBD-II Access Does Not Mean Every Modern Car Is Suddenly Unlocked
This Mustang GTD announcement is also a good example of why tuning compatibility has to be checked by exact year, model, and controller. Direct OBD-II access on a supported GTD does not mean every late-model Ford, GM, Stellantis, or European controller works the same way.
We recently covered the broader move toward OBDonUDS, secure gateways, and more software-controlled vehicle access. We have also explained why some modern vehicles require controller unlocks, upgrade services, or additional licensing before tuning. The GTD is notable precisely because HP Tuners says its supported 2025-2026 application can be accessed through the OBD-II port without an additional controller upgrade.
Before buying hardware or credits, always confirm the exact vehicle and controller on HP Tuners' current vehicle-support list. Compatibility can be application-specific and software support continues to evolve.
What Should Be Logged Before a GTD Calibration Change?
On a supercharged, high-output combination, a proper baseline is more useful than a blind first revision. A tuner may want to review commanded versus actual air-fuel ratio, spark advance and knock response, fuel pressure, injector behavior, throttle angle, torque intervention, intake-air temperature, coolant and oil temperatures, boost-related channels, transmission behavior, and any diagnostic trouble codes that appear under load.
That baseline becomes even more important when airflow, pulley ratio, fuel, exhaust, or other power-producing hardware changes. A modification that looks simple mechanically can shift airflow and torque enough to change how the factory control system responds.
For local customers, North Texas High Performance's Mainline ProHub dyno gives us a controlled environment for baseline testing, load-based calibration work, diagnostics, remote-tuner support, and repeatable before-and-after verification. Direct hub connection removes tire slip from the measurement process and makes it easier to repeat the same operating conditions while watching the data.
The Opportunity Is Bigger Than a Peak Horsepower Number
There will obviously be interest in making more power with the Mustang GTD. But the immediate significance of this release is access. Tuners can now work directly with supported ECM and TCM calibrations using a mainstream professional toolchain instead of treating the GTD as a closed box.
That opens the door to better data collection, calibration refinement around supported modifications, transmission strategy work where appropriate, and remote tuning workflows. It also gives owners a clearer path to having modifications tested rather than relying on assumptions or generic advice from a different Mustang platform.
The smartest first step is still to define the goal. A street-driven GTD, a road-course car, a half-mile car, and a dyno-development vehicle can all need different priorities. Power is only one part of the job; repeatability, thermal control, drivability, fuel quality, transmission behavior, and safety margins matter just as much.
Need the Hardware or Want the Combination Tested?
SMG Speed Shop carries the HP Tuners MPVI4 and credit-equipped MPVI4 packages for supported applications. If you are planning a Mustang GTD calibration project, verify your exact controller support and licensing requirements before ordering so the hardware and credits match the job.
For customers who want the car tested locally, NTHP can handle mechanical inspection, diagnostics, controlled dyno testing, calibration support, and before-and-after validation on our Mainline ProHub system in Justin, Texas. Request dyno time with NTHP here.
Sources: HP Tuners, August 25, 2026 Mustang GTD support announcement; Ford Mustang GTD official performance and technology information.
