Your New Performance Car May Be Locked: ECU Unlocks, Credits and the Real Tuning Process

Buying the intake, headers, pulley, injectors or exhaust is no longer the whole performance plan. On many newer cars and trucks, the first question is whether the engine or transmission controller can be accessed at all. Some vehicles can still be read and written through the diagnostic port. Others require an in-vehicle software upgrade, a gateway-bypass cable, a mail-in controller service or a replacement module before calibration work can begin.

That does not mean the vehicle is untunable. It means the tuning path now has more steps, more application-specific hardware and more room for expensive mistakes when the controller is not identified first.

Click the image to open the full-size version.

Why controller access has become a major aftermarket issue

Modern vehicle control systems do far more than command fuel and spark. They coordinate torque requests, transmission behavior, throttle angle, boost control, cylinder deactivation, thermal protection, traction systems, security functions and communication with multiple other modules.

Manufacturers have added stronger security around those systems. Some of that protects vehicles against unauthorized programming and theft. The aftermarket consequence is that a modification may require access to controllers and data that are no longer available through the simple plug-in workflow enthusiasts remember from older platforms.

SEMA has specifically identified access to ECU, OBD and calibration information as essential to the right to repair and modify newer vehicles. Its current principles note that performance, reliability and safety modifications increasingly require electronic access so aftermarket parts can work correctly with the OEM systems surrounding them.

ECM, PCM and TCM: identify the module before ordering anything

The acronyms are often used casually, but they describe different jobs:

• ECM: Engine Control Module. It primarily manages engine operation.
• PCM: Powertrain Control Module. Depending on the platform, it can manage the engine and additional powertrain functions.
• TCM: Transmission Control Module. It manages shift scheduling, pressure, torque-converter behavior and other transmission functions.

A vehicle may need access to more than one controller. An engine calibration alone may not deliver the expected result when the transmission controller is still limiting torque, commanding unwanted shifts or using a strategy that does not match the modified engine.

This is why year, model and engine are not always enough. The controller family, service number, operating system and vehicle architecture can change the required process within what appears to be the same generation.

What a “locked ECU” actually means

Locked does not have one universal definition. It can mean the controller will not accept an aftermarket calibration until a security procedure is completed. It can mean the module must be physically modified or electronically upgraded. It can also mean the vehicle has a secure gateway that blocks normal diagnostic access without an approved bypass method.

The important distinction is between controller access and calibration quality. Unlocking a controller does not add horsepower. It simply makes supported reading and writing possible. The actual results depend on the parts combination, fuel, data, calibration decisions and validation that follow.

The five-step modern tuning workflow

1. Identify the exact controller and architecture

Start with the complete vehicle information, then confirm the ECM, PCM and TCM families involved. Do not assume that another vehicle with the same engine uses the same module or access process.

2. Confirm the required access method

The common paths include:

• Direct OBD access: The supported interface communicates through the diagnostic port without module removal.
• In-vehicle OBD upgrade: Software performs the required controller upgrade through the port before normal tuning begins.
• Bench or mail-in service: The controller is removed and electronically serviced before it can accept calibrations.
• New, exchange or replacement controller: A ready-to-tune module is programmed for the application and installed in place of the original.
• Secure-gateway access: An additional cable or bypass connection is required for supported communication.

3. Match the interface, cable and software

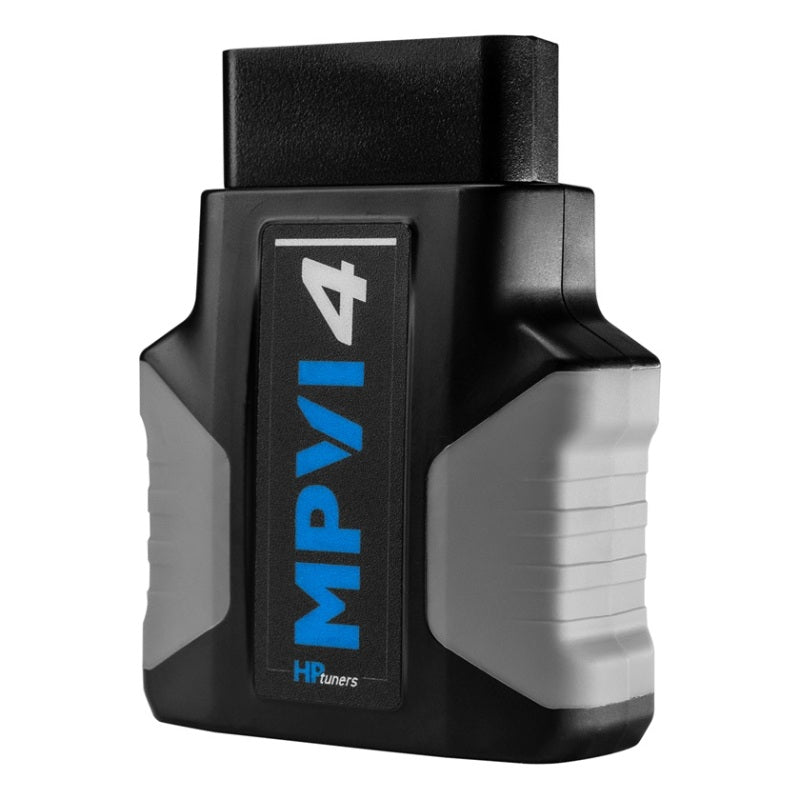

A controller being supported does not automatically mean every generation of interface can perform every function. Verify whether the job requires an HP Tuners MPVI4, a Pro Link+ cable for external sensors, or an application-specific connection such as the 2018+ Dodge, Jeep, Ram and Chrysler Smart Access cable.

4. License the supported controller

HP Tuners Universal Credits are licensing currency. They are separate from the interface and separate from the tuner’s labor. The required number varies by vehicle and controller. A license is generally required when writing a calibration, while scanning and data logging can often be performed before licensing.

Credits are not a tune, and a device that includes credits is not automatically a finished calibration package. The credits authorize supported writing for the licensed vehicle or controller combination.

5. Baseline, calibrate and validate

Before changing the file, scan the vehicle, save the stock read and establish that the combination is mechanically healthy. After calibration changes, validate the result under controlled load while watching the data that can actually hurt the engine or transmission.

Why online advice becomes outdated so quickly

Controller support evolves. A workflow that required module removal last year may become a direct OBD process after a software release. A similar-looking controller on a newer network architecture may still require a service.

Recent GM transmission examples make the point:

• In November 2025, HP Tuners announced that supported GM T87A TCMs no longer required the previous send-in upgrade and could be handled through the OBDII port.
• In March 2026, the company added direct OBDII upgrade support for the GM T93 TCM on Global A vehicles, eliminating the previous mail-in step for those applications.
• Global B T93 applications remain a different workflow. HP Tuners’ December 2025 expansion for those modules still required its T93 Global B upgrade service.

The lesson is not to memorize one rule for “all T93s” or “all 10-speeds.” The lesson is to verify the exact architecture and current support path immediately before buying hardware or removing a module.

The real cost stack of modern tuning

Customers often budget for the tuning device and forget the rest. A complete modern tuning plan may include:

• The interface or remote-tuning device
• Universal Credits for each required controller
• PCM, ECM or TCM unlock or upgrade service
• Gateway, bench or external-sensor cables
• Shipping and vehicle downtime when a module must be removed
• Custom calibration labor
• Dyno or loaded road validation
• Mechanical corrections found during the baseline inspection

SMG carries application-specific access products such as the GM E90 L84/L87 PCM upgrade, GM E90 ECM and T93 TCM upgrade kit, GM E41 upgrade kit, L5P ECM upgrade, 2020+ Camaro T93 service and GM E99 ZR1 PCM upgrade.

Those products solve different access problems. They should not be selected only because the engine family or transmission name looks familiar.

What should be logged before the first performance write?

A responsible baseline should include the channels that expose mechanical or electrical problems before added airflow and torque make them worse. Depending on the platform, that can include:

• Battery and charging voltage
• Diagnostic trouble codes and misfire history
• Commanded and actual lambda or air-fuel ratio
• Low-side and high-side fuel pressure
• Injector pulse width and available fuel-delivery window
• Knock activity and ignition correction
• Intake-air, coolant, oil and transmission temperatures
• Throttle closure and torque-management intervention
• Boost target versus actual boost
• Transmission slip, line pressure and converter behavior

Our earlier guides on LT1 and LT4 fuel-system limits, high-RPM breakup and ignition misfire, seasonal ethanol content and when modifications require tuning explain why the controller file cannot compensate for every failing component.

Do not tune around a hardware problem

A weak pump, leaking charge system, damaged catalyst, marginal plug, failing coil, slipping transmission or incorrect sensor signal should be repaired before the calibration is used to chase the symptom. Disabling protection or hiding a code does not fix the source of the problem.

The best modern tuning results come from treating the vehicle as a complete system. Airflow parts, fuel delivery, ignition, cooling, transmission behavior and controller access all need to support the same target.

Modern tuning purchase checklist

• Confirm the exact year, model, engine and transmission.
• Identify every controller that must be calibrated.
• Verify the latest support status and required access method.
• Confirm the compatible interface generation and software version.
• Add the correct licensing credits for the ECM, PCM and TCM.
• Determine whether a gateway or external-sensor cable is required.
• Plan for downtime when a module must be removed and shipped.
• Baseline the vehicle before modifying the calibration.
• Validate the finished combination under real load.

Build the entire path with SMG and NTHP

SMG Speed Shop can help match the correct HP Tuners hardware, controller service and supporting performance parts to the actual vehicle. Start with our MPVI4 package with two Universal Credits, MPVI4 package with four Universal Credits or HP Tuners and AEM wideband bundle, then verify the exact controller-access requirements before ordering.

For customers who want the complete job handled professionally, North Texas High Performance can inspect the combination, install supporting parts, establish the baseline, calibrate supported vehicles and validate the result on the Mainline ProHub dyno.

Do not buy the tune before confirming the path to the controller. Contact SMG with the year, make, model, engine, transmission, current modifications and future power goal so the hardware, credits, access service and calibration plan are correct the first time.

Technical sources: SEMA Right to Repair and Modify Principles; HP Tuners controller services explained; HP Tuners credits and licensing; GM T87A support update; GM T93 Global A support update; and GM Global B T93 coverage update. Controller support and requirements can change. Verify the current application before purchasing.
