1,200 HP Driveshaft, 150 MPH Critical Speed? Why Horsepower Rating Isn’t the Whole Story

A four-digit horsepower rating can make a driveshaft sound practically indestructible. But horsepower capacity is only one part of choosing a shaft for a fast street or race car. Rotational speed, shaft length, tube diameter, material, balance, operating angle and the rest of the driveline geometry can matter just as much.

A perfect example is the 2009-2015 Cadillac CTS-V. Driveshaft Shop publishes a 1,200-horsepower rating for its one-piece aluminum dual-CV shaft for this application, while also listing an application-specific critical speed of 150 mph. Its carbon-fiber counterpart is listed with a critical speed above 250 mph. Those numbers are not contradictory. They describe two different engineering limits.

Horsepower rating and critical speed answer different questions

A driveshaft horsepower or torque rating is primarily about whether the shaft, joints, splines, flanges and related hardware can transmit the load without yielding or failing. Critical speed deals with the shaft’s behavior as rotational speed rises.

Every rotating shaft has natural bending frequencies. As shaft speed approaches a resonant range, the tube can begin to deflect and vibrate rather than remaining perfectly centered. In severe cases the shaft can bow or whip. That is why a shaft that is strong enough for the engine’s torque can still be the wrong shaft for a car’s intended road speed, gearing or transmission combination.

This is also why “my car only makes 700 horsepower” is not enough information to choose a driveshaft. A 700-horsepower car that spends time at very high vehicle speed can impose a different driveshaft-speed requirement than a higher-horsepower car that runs a shorter quarter-mile combination and never approaches the same shaft rpm.

Driveshaft rpm is not the same as engine rpm

The driveshaft sits downstream of the transmission. Its rotational speed depends on transmission output speed, axle ratio, tire diameter and vehicle speed. In an overdrive gear, the driveshaft can rotate faster than the engine. That surprises people who think an engine’s redline automatically defines the maximum driveshaft rpm.

The practical takeaway is simple: when a build adds power, changes transmission ratios, changes rear gearing, changes tire diameter or substantially increases the vehicle’s intended top speed, the driveshaft should be evaluated as part of the system rather than treated as an isolated horsepower-rated component.

What changes a driveshaft’s critical speed?

Critical-speed calculations are application-specific. Driveline engineering tools from Spicer use factors including driveshaft style, tube outside diameter, shaft series and distance between joint centers. Wall thickness and the design of the complete assembly also matter. The longer a shaft becomes, the more challenging high-speed stability generally becomes, which is one reason long-wheelbase and high-speed applications can require different solutions than short shafts.

Material matters too, but “carbon fiber is always better” is still too simplistic. Carbon-fiber shafts can offer excellent strength-to-weight characteristics and can be engineered for very high critical speeds, while aluminum and steel remain excellent choices in many combinations. The correct answer is the shaft that is engineered for the actual vehicle, transmission, rear end, length, power, speed target and usage.

A useful real-world comparison: 2009-2015 CTS-V

SMG Speed Shop currently carries both Driveshaft Shop versions for the second-generation CTS-V automatic platform:

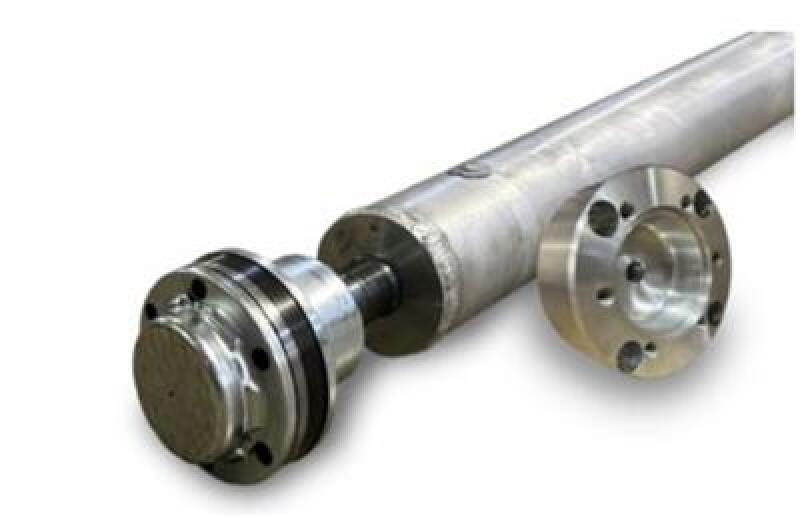

• DSS 2009-2015 Cadillac CTS-V 1-Piece Aluminum Dual CV Driveshaft
• DSS 2009-2015 Cadillac CTS-V 3.8-inch Carbon-Fiber 1-Piece Dual CV Driveshaft

The aluminum shaft is a legitimate high-power component, not a “weak” option. The point is that its published horsepower capacity and its published critical-speed figure describe different characteristics. If the build’s intended speed approaches the manufacturer’s published operating limit, the shaft selection needs to reflect that before the car is used at that speed.

For a street car that never sees extreme vehicle speed, the aluminum solution may be entirely appropriate. A standing-mile car, half-mile car, very high-speed roll-racing build or other application with much higher driveshaft rpm may need a different design. Always use the manufacturer’s current application data rather than assuming one material or horsepower number settles the question.

Balance does not erase a critical-speed problem

High-speed balancing is essential, but balance and critical speed are not interchangeable. A properly balanced shaft can still reach a resonant speed if its dimensions and operating conditions place that resonance inside the car’s usable range. Conversely, poor balance, damaged joints, incorrect angles, runout or installation issues can create vibration well before a properly engineered shaft reaches its intended limit.

If a car develops a vibration that rises sharply at a repeatable vehicle speed, do not assume the answer is to accelerate through it. The driveline should be inspected for shaft condition, flange runout, joint condition, fastener torque, operating angles, mounts, differential movement and other installation variables. The manufacturer’s shaft-speed guidance should be checked as part of that diagnosis.

One-piece conversions change more than weight

Many performance cars use multi-piece factory driveshafts with carrier bearings, rubber isolation and other components intended to control noise, vibration and harshness across a broad range of normal street operation. A one-piece performance shaft removes some of that complexity, but it also changes the system’s length, stiffness, mass distribution and resonant behavior.

That does not make a one-piece conversion inherently problematic. Quality aftermarket shafts are engineered around those changes. It does mean the conversion should be treated as a designed driveline component, not simply a lighter tube connecting the transmission to the differential.

Safety loops are important, but they are not a critical-speed fix

Some race classes and sanctioning bodies require driveshaft containment hardware, and it is smart protection on many high-performance builds. For example, SMG carries the BMR front driveshaft safety loop for 6th-gen Camaro applications.

A safety loop helps contain a shaft if a joint or shaft fails. It does not increase the shaft’s critical speed, correct excessive operating angle, fix imbalance or turn the wrong driveshaft into the right one. Containment and shaft selection solve different problems.

Do not confuse engine vibration with driveline resonance

High-performance cars can have several different vibration sources that feel similar from the driver’s seat. Engine torsional vibration, wheel and tire problems, driveline angle issues, differential movement, axle problems and driveshaft resonance can all appear under load or at speed.

We recently covered why crankshaft harmonics and harmonic dampers matter more as power climbs. That is an engine-side vibration problem. Driveshaft critical speed is a driveline-speed problem. The correct diagnosis depends on when the vibration occurs, what it follows and what changes make it better or worse.

What to check before ordering a performance driveshaft

• Exact year, model and transmission: automatic and manual applications often use different lengths, flanges and joint arrangements.
• Rear differential or conversion: a factory differential and an aftermarket rear conversion may require completely different shaft hardware.
• Power and torque: the shaft still needs adequate load capacity.
• Rear gearing and tire diameter: both affect driveshaft rpm at a given road speed.
• Intended top speed: quarter-mile, half-mile, standing-mile and road-course cars can have very different shaft-speed requirements.
• Vehicle modifications: transmission swaps, differential swaps and altered ride height can change fitment or operating angles.
• Manufacturer limits: use the current manufacturer specification for the exact part number and application.

Build the driveline for the car you are actually building

The lesson is not that aluminum driveshafts are bad or that carbon fiber is mandatory. It is that a horsepower number cannot describe every operating limit of a rotating driveline component.

A properly selected performance driveshaft should satisfy the car’s torque requirement, shaft-speed requirement, fitment, joint design and intended use. On a serious build, that selection should happen alongside the transmission, rear gear, axle, tire and safety-hardware decisions rather than after the engine is already making power.
