Supercharger Boost Drops at High RPM: Belt Slip, Heat Soak and Throttle Closure Explained

A supercharged car that makes strong boost in the midrange and then loses boost near redline can send people straight to the pulley catalog. That is usually the wrong first move. A falling boost curve can come from belt slip, rising inlet-air temperature, an electronic throttle or bypass closing, an airflow restriction, a fuel or knock-protection response, or simply the normal operating characteristics of the supercharger system.

The important point is simple: boost pressure is a result, not a diagnosis. Before changing pulley size, belt width or calibration, you need to know why manifold pressure is changing.

First, know what kind of boost curve you should expect

A positive-displacement supercharger such as a Magnuson TVS generally produces substantial airflow early in the rev range. Manifold pressure may stay fairly steady, rise, or even move slightly as engine airflow changes. A centrifugal supercharger such as a ProCharger behaves differently because compressor speed rises with engine speed, so boost normally builds progressively toward redline.

That difference matters. A centrifugal combination that suddenly stops gaining boost at high rpm deserves a close look at belt drive, head-unit speed, inlet restriction and throttle behavior. A positive-displacement system that loses pressure may be showing belt slip, bypass activity, throttle closure, increasing engine airflow, thermal intervention or another control strategy.

1. Belt slip is one of the first things to rule out

Supercharger drive load rises quickly as speed and airflow increase. A smaller blower pulley increases the drive ratio, but it also reduces belt wrap around the pulley and asks the belt to transmit more torque. That is why a combination can look fine at moderate rpm and then lose blower speed near the top of a pull.

ProCharger specifically publishes guidance on belt selection and tensioning, and its supercharger systems use wider multi-rib drives in higher-load applications to improve grip. Signs that support a belt-slip diagnosis can include belt dust, glazing, a belt that repeatedly needs adjustment, inconsistent peak boost, or a boost curve that rolls over while the throttle remains open.

Do not assume a squeal has to be present. A belt can lose effective drive without making an obvious noise from the driver seat.

2. Calculate supercharger speed before reaching for a smaller pulley

With a centrifugal supercharger, the pulley ratio is only one part of the equation. The internal step-up ratio and engine rpm determine actual impeller speed. ProCharger publishes a supercharger speed calculator so owners can compare their combination with the head unit's operating limit.

The basic relationship is crank pulley diameter divided by supercharger pulley diameter, multiplied by the head unit's internal step-up ratio and engine rpm. That calculation is specific to centrifugal head units; positive-displacement superchargers have their own rotor-speed limits and drive recommendations.

A smaller pulley may restore boost if the original problem is simply an intentionally conservative drive ratio. It will not fix a slipping belt, restricted inlet, closed throttle or inadequate cooling. It can make those problems worse.

3. Heat soak can kill power even when the boost gauge looks normal

Charge temperature deserves its own discussion because heat does not always show up as lower boost pressure. Hotter air is less dense, and modern engine management can react to high intake-air temperature with reduced spark advance or torque intervention. The car can lose power from one pull to the next even if the manifold-pressure number barely changes.

Magnuson emphasizes this exact issue in its intercooling technical material, explaining that effective liquid-to-air cooling is intended to minimize heat soak and performance drop-off during sustained high-load operation.

When diagnosing a repeated-pull problem, compare intake-air temperature at the beginning and end of each run. Also check intercooler pump operation, coolant level, heat-exchanger airflow and whether the system has had enough time to return to a consistent starting temperature.

4. Throttle closure can look exactly like a supercharger problem

On a modern drive-by-wire vehicle, accelerator-pedal position and throttle-blade angle are not the same thing. The driver can be at 100 percent pedal while the ECU closes the throttle because of torque management, knock response, fuel-pressure loss, excessive temperature, modeled airflow limits or another protection strategy.

If the throttle closes, manifold pressure can fall immediately. In that case the boost drop is a symptom of the ECU's decision, not evidence that the supercharger suddenly stopped working.

The same logic applies to a bypass valve on many positive-displacement systems. If bypass position is available in the scan data, log it. A bypass that opens when it should be closed changes the diagnosis completely.

5. Airflow restrictions can cap boost and power

A dirty or undersized air filter, collapsing inlet tube, restrictive throttle body, intercooler restriction or exhaust-side limitation can change the pressure relationship across the engine and supercharger. With a centrifugal system, a restricted inlet can prevent the compressor from moving the air expected at a given speed. With a positive-displacement system, changes in engine volumetric efficiency can also change manifold pressure even when blower speed is unchanged.

This is another reason not to evaluate a build by boost psi alone. More efficient cylinder heads, cam timing or exhaust can sometimes make more power at the same or even lower boost because the engine is moving air with less restriction.

Log the car before changing hardware

A useful boosted-vehicle log should include as many of the following channels as the platform supports:

• Engine rpm
• Manifold absolute pressure or calculated boost
• Accelerator-pedal position and actual throttle angle
• Supercharger bypass position, if available
• Intake-air temperature, ideally at the relevant post-intercooler sensor
• Spark advance and knock retard
• Commanded and measured lambda/air-fuel ratio
• Low-side and high-side fuel pressure where applicable
• Injector pulse width or duty cycle
• MAF airflow when the vehicle uses a MAF-based strategy
• Supercharger or impeller speed if measured or reliably calculated

For a deeper look at building a useful log instead of collecting hundreds of meaningless channels, see our high-horsepower data-logging and dyno tuning guide.

Useful hardware for diagnosing and correcting the problem

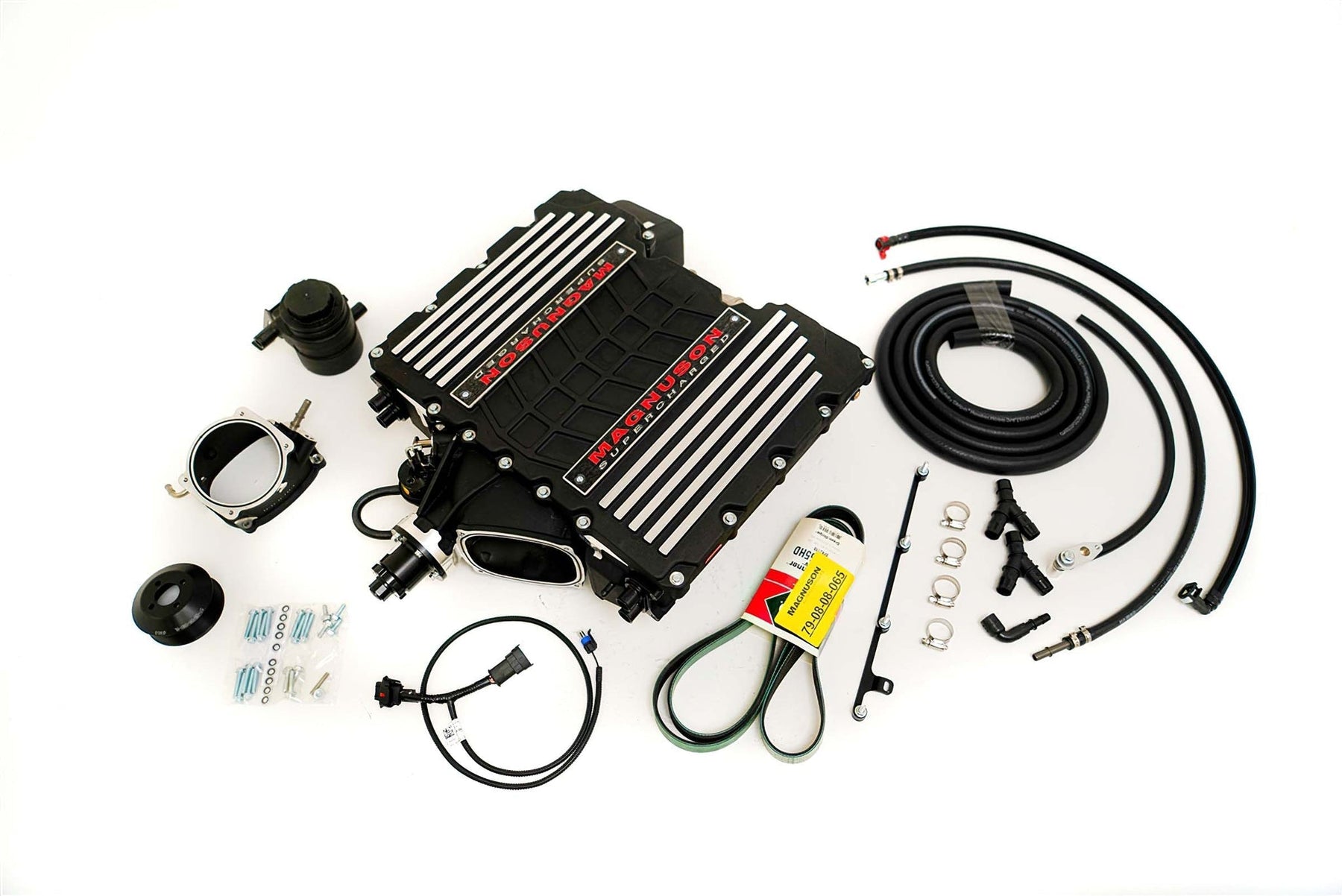

SMG Speed Shop carries complete forced-induction systems and the supporting hardware needed to build them correctly. The Magnuson Magnum TVS2650 LT1/LT4 Hot Rod supercharger kit is one example of a modern positive-displacement system with integrated charge cooling and pulley options.

For applications that need additional belt grip after the combination has been properly diagnosed, SMG also carries the GripTec 8-rib two-piece pulley for TVS2650 LSA/LT4 applications. The key is to select pulley diameter and belt-drive hardware around the actual blower-speed and power target, not simply install the smallest pulley available.

For logging and calibration work, the current HP Tuners MPVI4 with Pro Feature Set provides the interface needed on supported vehicles to capture the channels that can separate a mechanical boost problem from a calibration or protection event.

The dyno is where the answer becomes obvious

A controlled pull makes this diagnosis much easier because rpm, load and starting conditions can be repeated. North Texas High Performance uses a Mainline ProHub 3000CCS hub dyno for load-based testing, calibration and repeatable before-and-after comparison without tire-to-roller slip adding another variable.

If a boosted car makes the expected power in the middle of the pull and then rolls over up top, the right next step is not automatically more boost. Compare boost, throttle, temperature, spark, fuel pressure and belt-drive behavior at the exact rpm where the curve changes. Once the cause is known, the hardware decision becomes much simpler.
