Peak CFM Is Not the Winner: How to Choose LS/LT Cylinder Heads That Actually Make Power

Shopping for cylinder heads by the biggest peak airflow number is one of the easiest ways to spend serious money and end up with an engine that is slower, softer, or harder to tune than it should be. Peak CFM matters, but it is only one measurement inside a complete airflow system. The right head has to match displacement, bore size, RPM range, camshaft lift and duration, intake manifold, exhaust, compression ratio, fuel system, and whether the engine is naturally aspirated or boosted.

That is especially relevant right now. PRI's August 2026 issue specifically highlights expert advice from cylinder-head manufacturers on choosing the correct product, while SEMA's 2026 market research continues to track a huge enthusiast market built around upgrading modern and older internal-combustion vehicles. For LS and LT owners, the practical question is not "which head has the biggest number?" It is "which head makes the whole combination work better?"

Peak CFM is only the top line of the flow chart

A flow bench measures how much air a port moves at specific valve lifts under controlled test conditions. A cylinder head that flows 360 CFM at .700-inch lift may sound automatically superior to one that flows 330 CFM, but that comparison can be meaningless if your cam only reaches .600-inch lift, the smaller head flows better through the lift range the engine actually uses, or the larger port slows air speed enough to hurt cylinder filling at the RPM where you drive the car.

Manufacturer data illustrates the point. Air Flow Research describes its 215cc LS1 head as a high-velocity torque-oriented design, while its larger LS offerings target different displacement and RPM combinations. Dart's LS technical information similarly publishes port volume, valve size, chamber volume, and flow together because no single one of those specifications tells the full story.

1. Look at the entire airflow curve

Your valve does not teleport from closed to maximum lift. It passes through low lift twice every cycle. That means airflow at .200, .300, .400, .500, and .600 inch can all matter. If two heads have similar peak numbers but one is stronger through the middle of the curve, that head can be the better choice for a street or road-course engine that lives through a wide RPM range.

When comparing heads, ask for the test bore, pressure standard, valve size, and whether the intake was tested with a radius plate or other fixture. Flow numbers from different benches are useful for general direction, but they should not be treated as perfectly interchangeable dyno numbers.

2. Port volume is not a horsepower rating

A 280cc intake port is not automatically better than a 230cc port. Runner volume is a useful clue, but minimum cross-sectional area, port length, shape, taper, and valve approach all influence velocity. A larger cross-section can support more airflow at high RPM, but an oversized port on a smaller engine can reduce air speed and weaken the pressure-wave activity that helps fill the cylinder.

Dart's own cylinder-head fundamentals material notes that smaller ports can benefit mild combinations by increasing inlet velocity. That is why the correct head for a 5.3-liter street truck is often different from the correct head for a 427-inch LS spinning 7,500 RPM.

3. Valve diameter has to match the bore and chamber

Bigger valves can increase curtain area, but the valve still has to fit the bore and work with the combustion chamber. If the intake valve is too close to the cylinder wall, shrouding can restrict airflow even when the valve itself is larger. Some high-flow LS heads require a minimum bore size for exactly this reason. AFR, for example, lists minimum bore requirements on multiple LS cylinder-head applications.

That makes the block part of the head-selection decision. Before ordering heads, verify bore diameter, piston valve-relief geometry, gasket bore, and piston-to-valve clearance. The correct answer for an LS3 is not automatically the correct answer for a small-bore 4.8 or 5.3.

4. Chamber volume changes the compression ratio

Combustion-chamber volume is another number that gets overlooked. Moving from a 68cc chamber to a smaller chamber can raise static compression, but the final ratio also depends on piston dish or dome, deck clearance, gasket bore and compressed thickness, and cylinder volume.

More compression can improve efficiency and torque when the fuel, cam timing, and calibration support it. It can also reduce knock margin. On a boosted LT1 or LS combination, chamber choice should be considered alongside boost pressure, charge temperature, fuel quality, and ignition timing rather than treated as a free horsepower upgrade.

SMG carries supporting sealing hardware such as this Cometic LS MLS head gasket, but gasket bore and thickness must be selected for the actual engine combination.

5. The valve springs have to match the cam, not the brochure

An assembled cylinder head is only ready to run if the springs, retainers, installed height, and clearances match the camshaft and intended RPM. Check seat pressure, open pressure at actual valve lift, coil-bind clearance, retainer-to-seal clearance, valve length, and rocker geometry.

For LS builds, SMG stocks valvetrain options such as the Texas Speed .660 dual spring kit with PAC springs and titanium retainers. Gen V LT owners can also find application-specific packages such as the TSP LT1/L83/L86 .660 dual spring kit. The important part is matching the spring package to the cam and measured installed height rather than assuming every .660-rated spring package is identical.

6. Heads and intake manifolds are one airflow system

A great cylinder head can only use what the intake manifold can feed it. Port shape and size need to match, and the manifold's runner length and cross-section influence the RPM range just as the cylinder head does. PRI has recently highlighted how intake-manifold development is following increasingly efficient cylinder heads because the manifold can become the next restriction.

For higher-RPM LS3 combinations, one example in the SMG catalog is the Texas Speed LS3 sheet-metal intake manifold with billet CNC runners. It is not the answer for every car, but it illustrates why the intake should be chosen as part of the same combination instead of after the heads are already bolted on.

7. Naturally aspirated and boosted engines do not prioritize everything the same way

A naturally aspirated engine has atmospheric pressure to work with, so port velocity, pressure-wave tuning, compression, and efficient cylinder filling are critical. A supercharged or turbocharged engine has additional pressure available, but that does not make cylinder-head selection irrelevant. Better airflow can reduce the pressure required to reach a power target, lower pumping work, and help the engine make more power at a given boost level.

Boosted combinations also put more emphasis on chamber sealing, deck strength, exhaust flow, valve control, fuel delivery, and temperature management. PRI's coverage of modern racing cylinder heads has documented manufacturers designing around rapidly increasing power-adder demand. For a serious boosted LS or LT build, the head decision should be made with the intended supercharger or turbo system, camshaft, exhaust, and fuel system already in the plan.

8. Do not forget pushrod length and geometry

Aftermarket heads, milled decks, different head gaskets, camshafts with different base circles, lifters, and rocker systems can all change valvetrain geometry. Dart specifically notes on LS technical sheets that pushrod length should be measured. That is good advice for any performance build. "Stock length" is not a measurement.

Verify preload or lash, rocker sweep, pushrod clearance, and piston-to-valve clearance during assembly. These are not glamorous numbers, but they are the difference between a combination that survives and one that turns expensive parts into metal debris.

9. Use the dyno to validate the combination, not to chase a hero number

The final test is how the engine behaves under load. A cylinder-head upgrade should be evaluated by the shape of the torque and horsepower curves, not just the single highest number at the top right of the graph. Datalogging should also confirm commanded versus measured lambda, fuel pressure, injector duty cycle, ignition timing, knock response, throttle angle, intake-air temperature, coolant temperature, and other channels appropriate to the platform.

If you are tuning an EFI LS or LT combination, SMG offers logging hardware such as the HP Tuners Pro Link+ cable and complete HP Tuners MPVI4 + AEM wideband tuning bundles. For more on what to watch beyond the peak dyno number, see our recent guide: 7 Data Channels That Can Save a High-Horsepower Build.

A practical LS/LT cylinder-head shopping checklist

• Engine: displacement, bore, stroke, piston design, compression target.
• Use: street, drag, road course, towing, roll racing, or dedicated competition.
• RPM range: where the engine spends its time and where you intend to shift.
• Camshaft: lift, duration, lobe separation, rocker ratio, and intended spring pressure.
• Head: port style, port volume, flow curve, valve size, chamber cc, deck thickness, and spring package.
• Air path: throttle body, intake manifold, port match, headers, and exhaust.
• Power adder: type, target boost, charge-air temperature control, and expected cylinder pressure.
• Fuel: pump capacity, injector headroom, ethanol content, pressure stability, and calibration.
• Assembly: gasket dimensions, fasteners, pushrod length, installed height, coil bind, retainer clearance, and piston-to-valve clearance.
• Validation: repeatable dyno pulls with complete datalogging.

SMG parts, NTHP installation and real-world validation

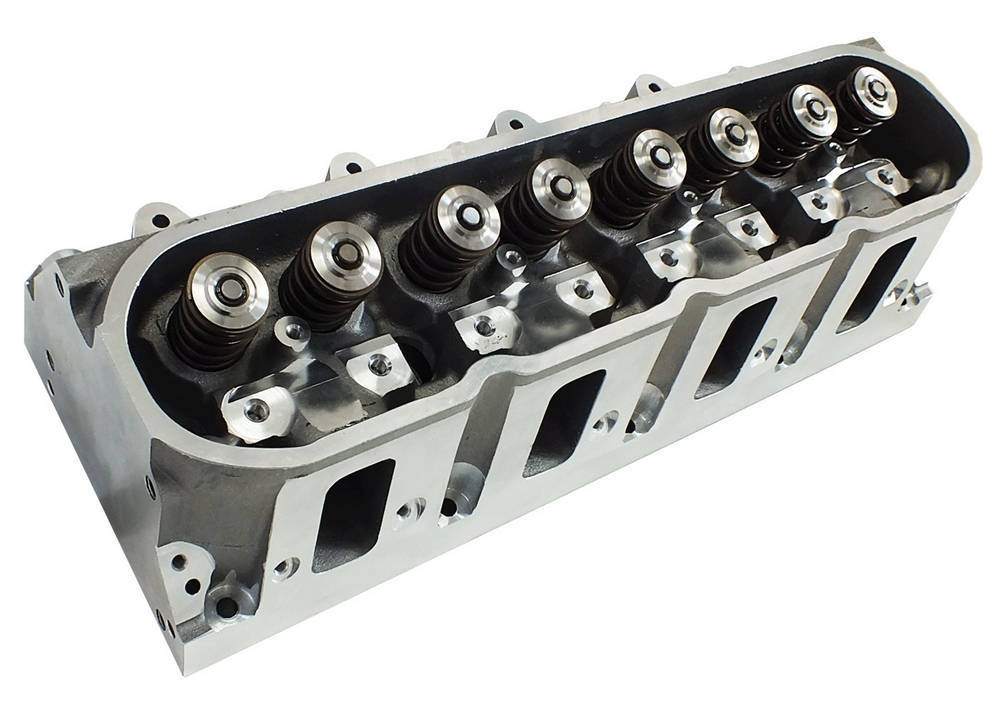

SMG Speed Shop carries cylinder heads, camshafts, valve springs, head gaskets, intake manifolds, fuel-system parts, forced-induction hardware, exhaust components, and tuning equipment for LS and LT performance builds. A current example is the Dart Pro1 LS 280cc cylinder head. It is a serious high-performance part, but like every head, it belongs in the right combination.

For customers who want the entire package engineered instead of buying parts in isolation, North Texas High Performance can handle installation, valvetrain setup, fuel-system work, calibration, datalogging, and Mainline ProHub dyno validation in Justin, Texas. The goal is not to win a spec-sheet contest. The goal is to build an engine that makes the power you want, where you want it, and keeps doing it.

Need help putting together an LS or LT top-end combination? Start with the vehicle, current engine specs, power goal, fuel, intended RPM range, and whether the car is naturally aspirated or boosted. SMG can help supply the parts, and NTHP can help turn the parts list into a complete, tested combination.
