Your Cam Kit Can Still Fail: Valve Spring Pressure, Installed Height and Coil Bind Explained
A camshaft can be selected correctly, installed with the right timing set, and tuned properly, yet the engine can still suffer a valvetrain failure because the valve springs were chosen by a single advertised number: maximum lift.
That number is not enough. A spring only works as part of an assembled system that includes the valve, spring seat or locator, seal, retainer, locks, rocker arm, pushrod, lifter, cam lobe and the cylinder head itself. The measurements on the completed head determine whether the spring has the correct pressure and enough room to travel.
This guide builds on our earlier article, Camshaft “Stages” Are Mostly Marketing. That guide explains how duration, lift, lobe separation angle and overlap shape the engine. This one explains what keeps the cam and valvetrain alive after the parts are selected.
Click the image to open the full-size Shopify-hosted version.
The Five Numbers You Need Before Installing a Valve Spring
1. Installed height
Installed height is the distance from the surface supporting the bottom of the spring to the underside of the retainer where the spring contacts it, with the actual valve, locks, retainer, locator and seal configuration installed.
This is not simply a cylinder-head catalog number. Valve length, lock location, retainer design, spring locator thickness, seat machining and production tolerances all affect the final measurement. COMP Cams instructs builders to measure every valve location, identify the shortest installed height and use shims as needed to bring the remaining locations into range.
Installed height controls two things at once:
- How much load the spring applies while the valve is closed
- How much physical travel remains before the spring reaches coil bind or the retainer contacts the seal or guide
Shortening installed height with a shim generally increases seat and open pressure, but it also reduces available clearance. Increasing installed height generally reduces pressure while creating more travel. That tradeoff is why randomly adding shims is not a safe substitute for measuring the complete assembly.
2. Seat pressure
Seat pressure is the spring load with the valve closed at the measured installed height. Its job is to keep the valve seated, control the valvetrain as the lifter follows the closing side of the cam lobe and prevent the valve from bouncing after it reaches the seat.
Too little seat pressure can contribute to valve bounce, unstable idle quality, lost cylinder sealing and erratic high-rpm behavior. Too much pressure increases load on the cam, lifter, pushrod, rocker, valve tip, guide and timing drive. The target is not the highest pressure available. It is the pressure specified for the cam profile, valvetrain mass, rocker ratio and intended rpm.
3. Open height and open pressure
Open height is the spring height when the valve is at full net lift:
Open height = installed height - actual net valve lift
Open pressure is the spring load at that open height. It must be high enough to keep the lifter, pushrod, rocker and valve under control over the nose of the cam and through the closing event.
Use actual net valve lift, not a rounded marketing figure. For a typical rocker-arm system, valve lift begins with cam lobe lift multiplied by the actual rocker ratio. Solid-lifter combinations must also account for lash. Deflection, geometry and actual rocker ratio can make the real number differ from a simple catalog calculation.
4. Coil-bind height and clearance
Coil-bind height is the compressed height at which the spring coils are effectively stacked and cannot safely move farther. Clearance is calculated as:
Coil-bind clearance = open height - published coil-bind height
COMP Cams gives a general minimum of 0.060 inch between the coils at full lift for both inner and outer springs. The spring manufacturer’s instructions always take priority because some designs and applications require a different margin.
Running directly against coil bind does more than stop the valve. It creates an extreme load spike through the retainer, locks, valve, rocker, pushrod, lifter and cam lobe. Even a combination that clears while cold and static can become unsafe when component flex, heat, harmonics and rpm are added.
5. Retainer-to-seal and retainer-to-guide clearance
The spring can have adequate coil-bind clearance and still fail because the underside of the retainer contacts the valve seal or guide at full lift. Before the springs are installed, measure the available travel from the underside of the retainer to the top of the seal or guide. That distance must exceed actual net valve lift by the required safety margin.
COMP Cams identifies inadequate retainer-to-seal clearance as a common cause of early camshaft failure. Also check the retainer against the underside of the rocker arm, especially when changing spring diameter, retainer design, valve length or pushrod length.
A Real BTR Spring Example

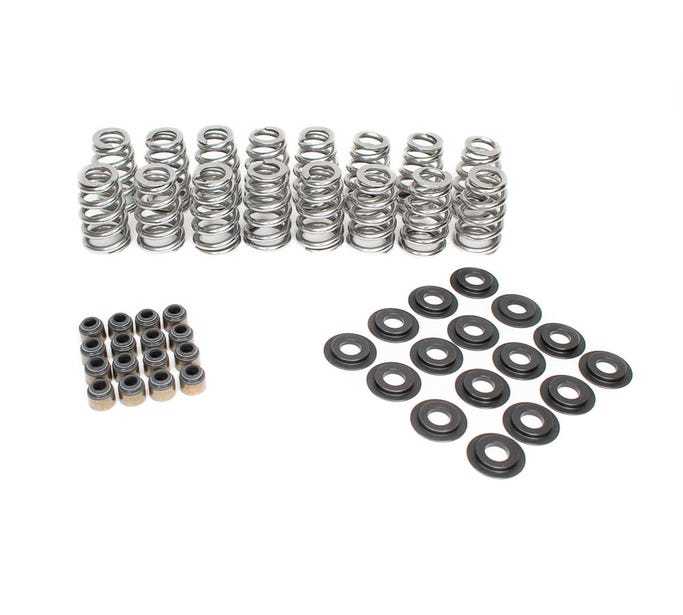

The BTR .625-inch Beehive Valve Spring Kit is listed with the following specifications:
- 125 lb at 1.800-inch installed height
- 350 lb at 1.200-inch open height
- 365 lb at 1.175-inch open height
- 1.100-inch coil-bind height
- 0.625-inch advertised maximum lift
Those specifications let us demonstrate why the installed assembly matters.
Example A: 0.600-inch net lift at 1.800 installed height
Open height: 1.800 - 0.600 = 1.200 inches
Coil-bind clearance: 1.200 - 1.100 = 0.100 inch
This example lands at the spring’s published 350-lb open-load point and provides 0.100 inch of theoretical coil-bind clearance.
Example B: 0.625-inch net lift at 1.800 installed height
Open height: 1.800 - 0.625 = 1.175 inches
Coil-bind clearance: 1.175 - 1.100 = 0.075 inch
The same spring now has only 0.075 inch of theoretical clearance. That is still above COMP’s general 0.060-inch guidance, but the margin is much smaller.
Example C: Add a 0.030-inch shim, then run 0.625 lift
A 0.030-inch shim reduces installed height from 1.800 to 1.770 inches.
Open height: 1.770 - 0.625 = 1.145 inches
Coil-bind clearance: 1.145 - 1.100 = 0.045 inch
The shim likely increases spring pressure, but it also reduces theoretical coil-bind clearance to 0.045 inch, below COMP’s general 0.060-inch recommendation. The spring did not change. The advertised maximum-lift number did not change. The assembled geometry changed, and that changed whether the combination was safe.
This is why a spring’s “max lift” cannot approve a build by itself.
Spring Pressure Is Not a Universal Camshaft Rating
Two cams with the same peak lift can require different springs. The lobe’s acceleration and velocity, engine speed, valve weight, retainer weight, rocker ratio and valvetrain stiffness all influence the load required to maintain control.
A gentle hydraulic-roller lobe operating at moderate rpm may live with substantially less pressure than an aggressive lobe with the same lift turning several hundred rpm higher. Conversely, installing excessive pressure “for safety” can shorten the life of parts that never needed that load.
The camshaft manufacturer’s spring recommendation should be the starting point. The assembled head measurements and an actual spring tester determine whether the parts meet that recommendation.
Beehive, Conical, Dual and Single Springs
Spring construction affects mass, harmonics, retainer size, pressure capability and packaging, but no design is automatically best for every engine.
- Beehive springs use a smaller upper diameter and typically a smaller, lighter retainer. They can provide excellent control in many hydraulic-roller street and performance combinations.
- Conical springs vary diameter through the coil stack and can help manage harmonics while reducing moving mass.
- Dual springs provide greater pressure and damping capability for more demanding lobes and rpm ranges, but require correct inner-step, locator, retainer and seal compatibility.
- Single springs with dampers remain appropriate for many moderate applications, provided the pressure and clearance requirements are satisfied.
The correct spring is the one that fits the head, matches the retainer and locator, supplies the required loads at the measured heights, clears every surrounding component and remains stable through the engine’s operating range.
Why Every Spring Should Be Checked on a Tester
Published spring loads are selection data, not proof that every spring in a used or newly assembled set produces the exact load on the box. Manufacturing tolerance, handling, heat cycles and service history affect pressure.
COMP considers a plus-or-minus 10 percent load variance acceptable for new matched springs and instructs builders to check loads with the actual retainer accounted for. For a serious performance build, record each spring at the intended installed and open heights. Match the set, correct the installed heights properly and replace any spring that does not meet the required load.
SMG offers both the COMP Cams Mini Spring Tester and the BTR Bench Top Valve Spring Tester for builders who want to verify loads rather than guess.
The Correct Measurement Sequence
- Confirm the camshaft manufacturer’s required seat pressure, open pressure, intended installed height and minimum clearances.
- Install the actual valve, locks, retainer, locator and seal at each valve position.
- Measure and record installed height at every valve.
- Identify the shortest usable height and determine where shims are needed.
- Use the actual measured installed height to test each spring’s seat load.
- Calculate full-lift open height using actual net valve lift.
- Test spring load at the calculated open height.
- Calculate coil-bind clearance and compare it with the spring manufacturer’s requirement.
- Measure retainer-to-seal, retainer-to-guide and rocker-to-retainer clearance through the full motion.
- Verify pushrod length, rocker geometry and piston-to-valve clearance before final assembly.
Our guide to measuring pushrod length accurately explains why pushrod selection should follow the actual assembled geometry rather than a generic “standard length” recommendation.
Common Warning Signs of a Spring or Clearance Problem
- The engine pulls cleanly at lower rpm but breaks up repeatedly near the same higher rpm
- Power falls off sooner than expected even though fuel and ignition data look healthy
- Frequent rocker, pushrod or lifter damage
- Valve seals damaged shortly after a cam installation
- Unexplained metal in the oil or abnormal valvetrain noise
- Spring pressure that drops rapidly after limited use
- Witness marks on retainers, rockers, seals, guides or spring locators
Do not assume every high-rpm breakup is caused by valve springs. Fuel pressure, ignition energy, plug gap, calibration and mechanical condition can produce similar symptoms. Diagnose the complete system before replacing parts. Our article Why Your Boosted Car Breaks Up at High RPM covers several of those other causes.
Build the Whole Valvetrain, Not a Shopping Cart of Separate Parts
A reliable cam package usually involves more than a cam and springs. Depending on the engine and intended use, the correct combination can include retainers, locks, locators, seals, shims, pushrods, lifters, trays, rocker upgrades, trunnions, timing components, gaskets, fasteners and calibration.
Shop current SMG options:
- Valve springs and spring kits
- BTR Ultimate RPM .650-inch Valve Spring Kit
- BTR 0.030-inch valve spring shims
- Camshafts
- Pushrods
- Lifters and related valvetrain parts
Need the Complete Cam Package Installed and Verified?
North Texas High Performance can handle complete LS, LT, Hemi and Ford camshaft packages, including supporting valvetrain components, installed-height and clearance checks, mechanical inspection, startup, calibration and dyno validation. The goal is not merely to make the engine chop. It is to make the entire combination work together and stay together.
Contact NTHP for installation and tuning, or contact SMG Speed Shop for help matching the cam, springs, pushrods, lifters and supporting parts before the order is placed.
Bottom Line
The spring box can tell you what a spring is designed to do at specific heights. It cannot tell you what height your assembled cylinder head actually has.
Measure installed height. Verify seat and open pressure. Calculate coil-bind clearance. Measure retainer-to-seal and rocker clearance. Check every valve. Then choose shims and supporting parts based on those measurements.
The advertised maximum-lift number is a clue, not an approval stamp.
