1-7/8 vs. 2-Inch Long-Tube Headers: Why Bigger Isn’t Always Better

Long-tube headers are one of the most proven ways to free up power on a performance V8, but choosing the biggest primary tube that fits is not automatically the fastest answer. A header is a tuned part of the engine combination. Primary diameter, primary length, collector design, cylinder-head airflow, cam timing, engine speed, displacement and power-adder airflow all influence where the engine makes torque and how efficiently it clears each cylinder.

That is why two otherwise similar builds can prefer different header sizes. The correct question is not simply, “How much horsepower can this header support?” It is, “What tube size and collector best match the airflow and RPM range of this engine?”

Why Primary Diameter Changes the Power Curve

Every exhaust event sends a high-pressure pulse down the primary tube. The tube's diameter affects gas velocity, while its length helps determine when pressure waves reach the collector and reflect back toward the exhaust valve. When the system is well matched, those pressure changes can improve scavenging during valve overlap and reduce the pumping work the engine has to do to empty the cylinder.

Smaller primaries generally keep exhaust-gas velocity higher at lower mass flow. Larger primaries provide more cross-sectional area and can reduce restriction when airflow and RPM climb. That tradeoff is the reason “bigger is better” is too simple. A tube that is unnecessarily large can move the combination away from the part of the RPM range where the car spends most of its time, while a tube that is too small can become a restriction as airflow demand increases.

Hooker/Holley's technical guidance makes the same basic point: smaller primary and secondary tubes tend to favor lower-RPM torque, while larger tubing tends to favor upper-RPM horsepower. Long-tube design also uses primary length and collector timing to improve scavenging compared with many factory manifolds and shorter designs. Read the Hooker/Holley header guide.

1-7/8-Inch vs. 2-Inch: What Actually Changes?

On modern LS and LT street/strip combinations, 1-7/8-inch and 2-inch primaries are both common because both can be correct. A 1-7/8-inch long-tube is often a strong all-around choice when the goal is broad street torque, strong midrange response and plenty of high-RPM flow without oversizing the system. A 2-inch primary becomes more attractive as cylinder airflow, displacement, RPM and exhaust mass flow increase, especially on aggressive naturally aspirated or forced-induction combinations.

There is no universal horsepower number where everyone should switch sizes. A 6.2-liter engine with stock heads and a mild cam has different needs than the same displacement with high-flow heads, more overlap and an elevated shift point. A positive-displacement supercharged engine moving substantially more air also creates a different exhaust-flow requirement than the same engine naturally aspirated.

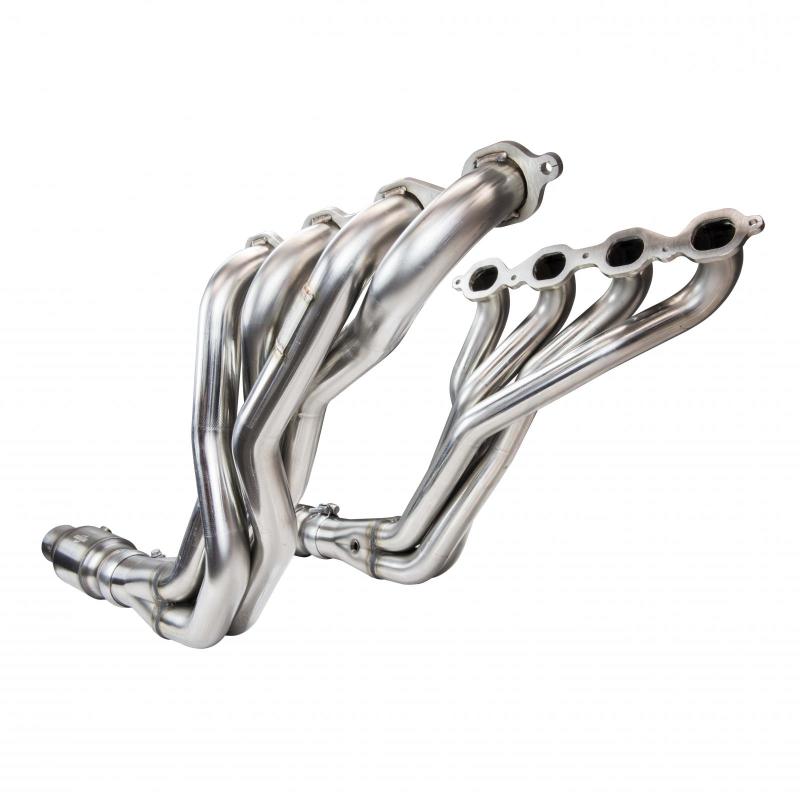

For a concrete Camaro example, SMG carries the Kooks 1-7/8-inch x 3-inch stainless long-tube system with catted connection pipes for 2016+ Camaro SS applications. For combinations that genuinely need more primary area, there is also the Kooks 2-inch x 3-inch stainless header system with Green catted OEM connections for Camaro SS/ZL1 applications. Fitment and emissions requirements should always be confirmed for the exact vehicle before ordering.

The Collector Is Part of the Header, Not an Afterthought

Primary diameter gets most of the attention, but collector size and shape matter too. The collector is where individual cylinder pulses merge. Its diameter, taper and transition influence how those pulses interact and how effectively the system maintains velocity while reducing restriction. That is one reason two headers with the same primary diameter can behave differently on the same engine.

The rest of the exhaust matters as well. A well-designed long-tube header feeding an undersized, sharply restricted exhaust system cannot deliver its full potential. On the other hand, an enormous exhaust with poor transitions is not automatically an improvement. The complete path from exhaust valve to tailpipe needs to work as a system.

Cam Timing, Cylinder Heads and Headers Are Connected

Header selection becomes more important when a camshaft adds overlap or when cylinder heads substantially increase airflow. During overlap, exhaust-wave behavior can help or hurt cylinder filling. That means the exhaust side should be planned with the same care as the intake, heads and cam rather than selected as an isolated bolt-on.

This is the same system-matching principle covered in our recent guide, Peak CFM Is Not the Winner: How to Choose LS/LT Cylinder Heads That Actually Make Power. Peak flow numbers are only useful when the rest of the combination can take advantage of them. Header diameter works the same way.

Forced Induction Does Not Eliminate Header Tuning

A supercharger or turbocharger increases mass airflow, which increases the amount of exhaust the engine has to move. That can make additional exhaust area valuable at high output. But forced induction still does not justify blindly choosing the largest header available. Engine speed, turbine arrangement on turbo systems, blower airflow, camshaft, cylinder heads, intended use and packaging all remain part of the decision.

For naturally aspirated cars, the goal may be to maximize scavenging and area under the torque curve. For a high-output supercharged combination, minimizing exhaust restriction at elevated airflow may carry more weight. The best choice is the one that matches the actual combination and performance goal.

Do Headers Require a Tune?

On a modern EFI performance car, significant airflow changes should be evaluated with real data rather than assumptions. Long-tube headers can change exhaust flow, oxygen-sensor location and the way the engine responds to load. Depending on the application and existing calibration, tuning may be needed to optimize the combination and verify that fueling, spark, torque management and other operating parameters remain where they should be.

That does not mean chasing a peak dyno number. The goal is a safe, repeatable calibration with good drivability and a power curve that matches the car's use. Our guide, Your Dyno Sheet Is Only Half the Story: 7 Data Channels That Can Save a High-Horsepower Build, explains why the data behind the number matters just as much as the number itself.

Fitment, Catalysts and Emissions Compliance Still Matter

Long-tube headers often place collectors, oxygen sensors and catalytic converters differently from factory exhaust manifolds. Ground clearance, steering clearance, starter access, transmission clearance and serviceability should all be considered before buying. A quality system engineered for the specific chassis can save significant installation frustration.

Emissions rules also vary by vehicle, application and jurisdiction. The presence of catalytic converters does not by itself guarantee that a header system is legal for every street-driven vehicle or every state. Confirm the manufacturer's application notes and applicable emissions requirements before installation. Track-only or competition-only components should be used only where legally permitted.

Measure the Result Instead of Guessing

If the goal is maximum performance, the best way to settle a header-size debate is controlled testing. North Texas High Performance, located beside SMG Speed Shop in Justin, Texas, can handle performance installation, diagnostics and calibration as a complete system. NTHP's Mainline ProHub 3000CCS hub dyno allows repeatable before-and-after testing without tire slip, along with controlled-load calibration and diagnostic work.

That combination matters because a part that wins at one point on a dyno graph is not necessarily the part that makes the car better everywhere. Street response, shift RPM, heat, fueling, drivability and the total power curve all count.

Build the Combination, Not Just the Parts List

If you are deciding between 1-7/8-inch and 2-inch long-tube headers, start with the engine you actually have and the engine you are building toward. Displacement, heads, camshaft, power adder, RPM range, exhaust size, catalyst requirements and vehicle use should all drive the choice.

Need help matching the right header system to your build? Shop the linked Kooks Camaro systems above or contact SMG Speed Shop for parts guidance. If you want the combination installed, calibrated and proven under controlled load, NTHP can take the project from hardware to verified result.
