Your C6 Has a 415-LPH DW400—Now What? Fuel Pressure, E85 and the Real Horsepower Limit

A fuel pump's flow number is useful, but it is not a universal horsepower guarantee. That distinction matters on modified C6 Corvettes, especially once boost, ethanol and higher fuel-pressure demand enter the picture.

SMG Speed Shop recently added the DeatschWerks DW400 Performance Fuel Pump Module for 2007–2013 C6 Corvette, a complete replacement module built around the DW400 pump. We also carry the DeatschWerks 415-LPH DW400 in-tank pump for 2003–2013 Corvette. Both make a good starting point for a bigger conversation: how much fuel system do you actually need?

415 LPH Is a Flow Rating, Not a Horsepower Switch

The DW400 is commonly identified by its 415-liter-per-hour flow class, but pump flow changes with operating conditions. Voltage at the pump, fuel pressure, plumbing restriction, filter condition and fuel type all influence how much usable fuel actually reaches the engine.

That is why two cars with the same pump can have very different real-world limits. A naturally aspirated LS3 on gasoline, a supercharged LS3 on E85 and a boosted LS7 are not asking the fuel system to do the same job.

Fuel Pressure Under Load Is What Matters

A static pressure check at idle can tell you that the system is alive. It cannot prove the system has enough capacity at wide-open throttle. The meaningful test is whether commanded fuel pressure remains stable as engine load and fuel demand rise.

On a boosted combination, the pump also has to work against more effective pressure. As the pressure requirement rises, available pump flow generally falls. That is why a pump that appears enormous on paper can run out of useful headroom sooner than expected in a high-boost application.

If fuel pressure starts dropping during a pull, do not immediately blame injector calibration or the tune. The system needs to be checked as a whole: pump voltage, wiring, regulator behavior, filter restriction, pickup condition, tank level and fuel pressure under load.

E85 Changes the Math

Ethanol-capable hardware is important, but compatibility and capacity are two different questions. An engine typically needs substantially more fuel volume on E85 than it does at the same power level on gasoline. That means a gasoline-based horsepower estimate should never be copied directly onto an E85 build.

This is also why ethanol content matters. A car that sees varying blends needs enough headroom for the fuel actually in the tank, not just the blend used when the parts list was created.

For a deeper explanation of why tuners should work from lambda instead of blindly comparing AFR numbers across fuels, see our guide: Stop Tuning by AFR Alone: Lambda, E85 Content and Wideband Errors Explained.

The Pump Is Only One Part of the Fuel System

A high-flow pump cannot compensate for injectors that are already at the edge of their useful duty cycle. Likewise, large injectors do not fix falling low-side pressure. The pump, injectors, wiring, regulator and calibration all have to support the same power target.

Injector ratings also need context. Fuel pressure, injector characterization, dead time and ethanol content all affect the usable result. We covered that in detail in A 1000cc Injector Is Not Always a 1000cc Injector.

Do Not Ignore Pump Voltage

A high-current pump needs a healthy electrical supply. Voltage drop through aging wiring, connectors, grounds or undersized circuits can reduce the performance of an otherwise capable pump. Measuring battery voltage alone is not enough. What matters is the voltage the pump actually sees while fuel demand is high.

This is one reason SMG and NTHP prefer data over assumptions. If a car is approaching the limit of its fuel system, logging pressure and checking pump voltage under load can separate a real capacity problem from an electrical or restriction problem.

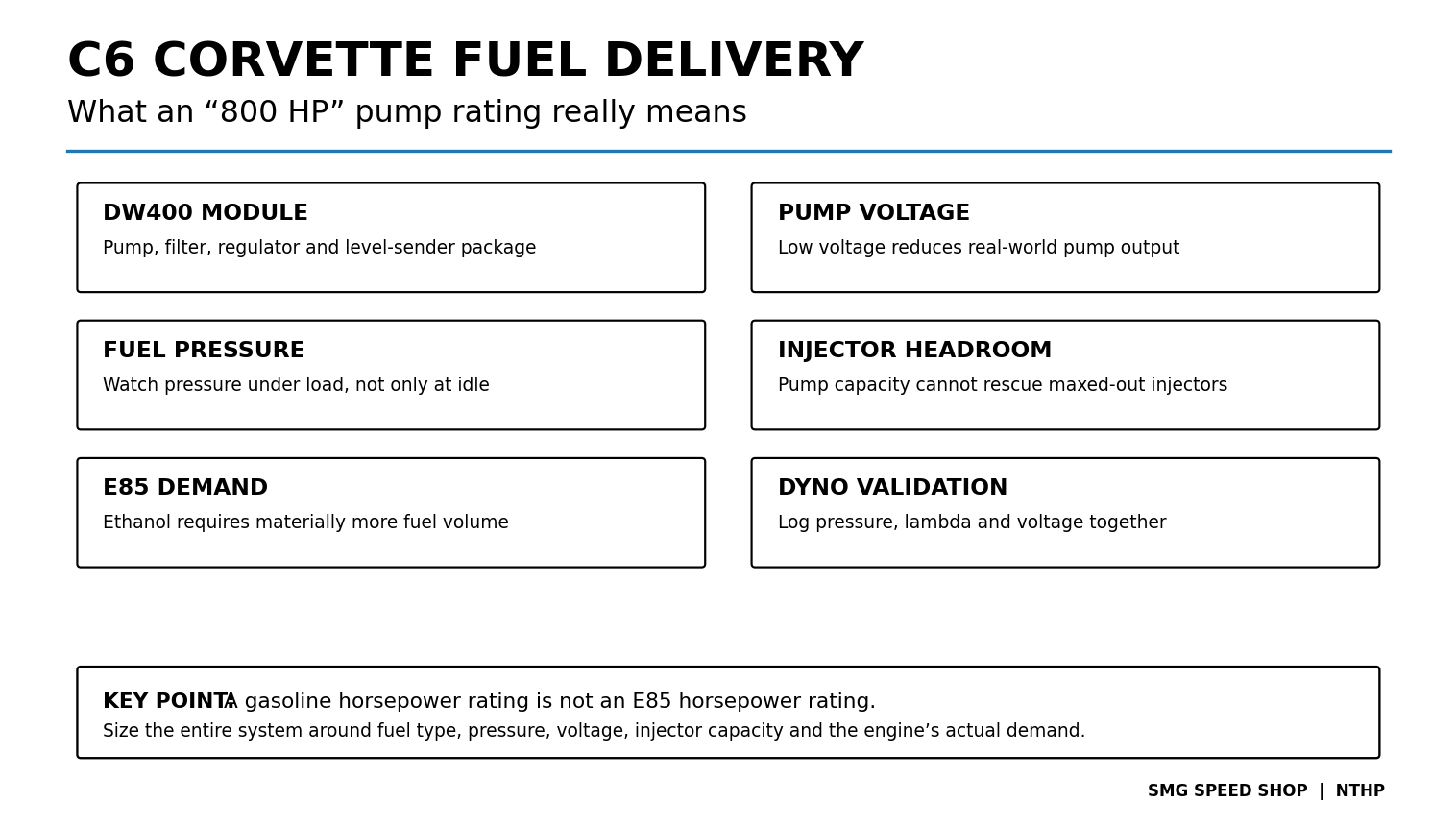

How We Validate a Modified C6

A sensible validation process is straightforward:

• Confirm the correct pump/module and installation for the application.
• Verify fuel level, filter and pickup condition.
• Measure pump voltage under load.
• Log fuel pressure through the pull.
• Review injector duty cycle and commanded versus measured lambda.
• Confirm actual ethanol content when tuning flex-fuel or E85 combinations.
• Dyno-test the complete combination instead of relying on a catalog horsepower estimate.

Horsepower claims deserve the same scrutiny as any other performance number. For more on how published performance claims should be interpreted, see That “Adds 25 HP” Claim May Not Mean What You Think.

Choosing the Right C6 Fuel Upgrade

For many 2007–2013 C6 owners, the new complete DeatschWerks DW400 performance module is attractive because it packages the pump into a direct replacement assembly rather than making the pump itself the entire project. For earlier or different combinations, the standalone 415-LPH DW400 Corvette pump remains another option.

The correct choice depends on the engine, fuel, power goal, boost level, injector package and how much future headroom you want. The answer should come from the combination, not from chasing the biggest number printed next to a pump.

Need the Fuel System Installed and Proven?

SMG Speed Shop supplies C6 Corvette fuel-system components, injectors, flex-fuel hardware, forced-induction parts and supporting performance equipment. For North Texas customers, North Texas High Performance can handle installation, fuel-pressure and electrical diagnostics, wideband and ethanol-content logging, dyno validation and tuning at our climate-controlled facility in Justin, Texas.

Build the system for the fuel and power you actually plan to run, then prove it under load. Shop the DW400 C6 module through SMG Speed Shop or contact NTHP when you want the complete combination installed and validated.
