Ford’s 5.4L Coyote Hypercar Is Alive: 6 Endurance-Racing Lessons for Your Mustang Build
Ford Racing has reached a major milestone with its upcoming FIA World Endurance Championship Hypercar: the new 5.4-liter, naturally aspirated Coyote-based V8 has fired inside the ORECA-developed chassis with the hybrid system operating alongside it. European track testing is scheduled to begin in August as Ford prepares for a 2027 WEC debut and a return to the fight for an overall victory at the 24 Hours of Le Mans.
That is exciting news on its own, but the more useful story for Mustang owners is what Ford’s development process says about building power that survives. The headline is not simply “bigger Coyote.” Ford is developing an entire system around airflow, oil control, cooling, torsional stability, electronics and repeatable testing.

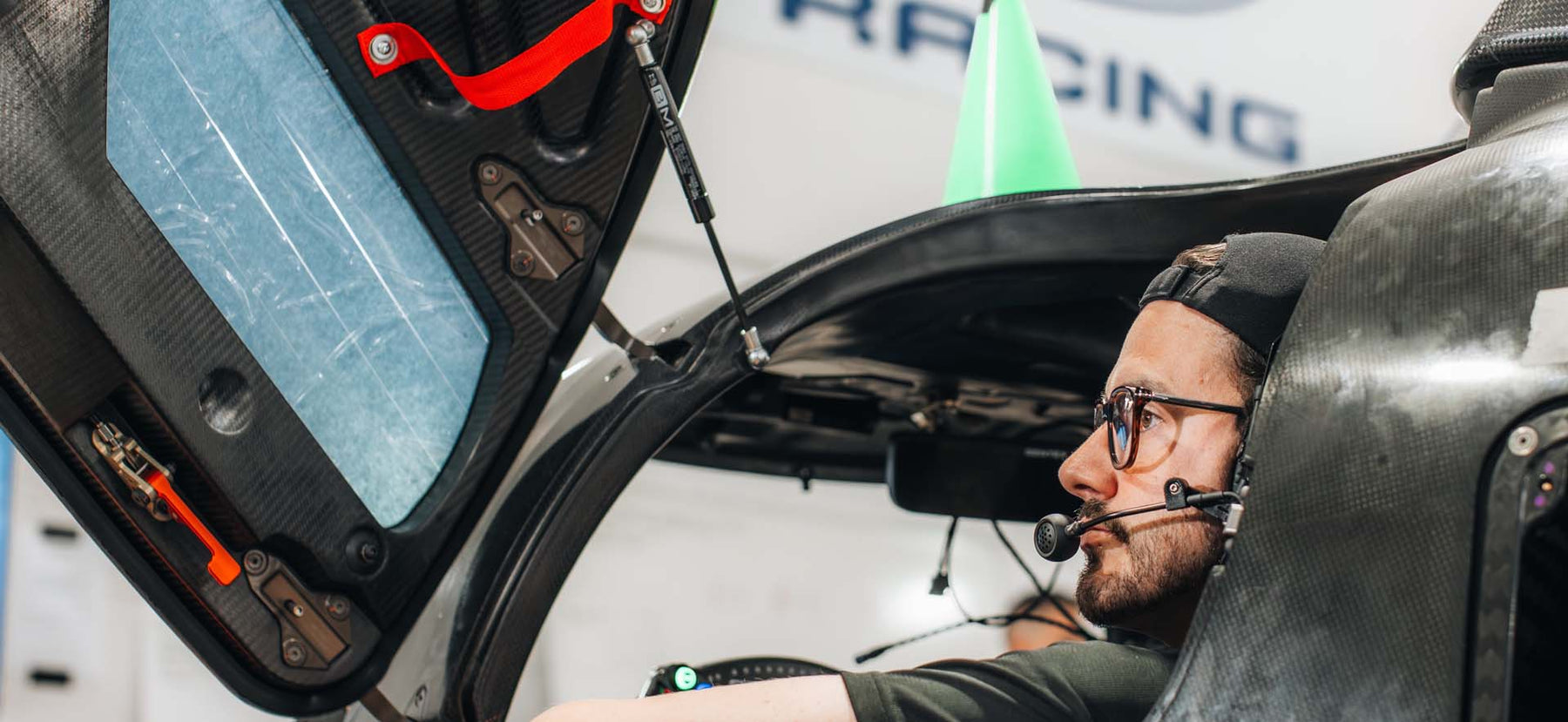

Ford Racing’s Hypercar during its chassis fire-up and integration phase. Click the image to view it full size. Photo: Ford Racing.
What Ford Actually Announced
Ford says the 5.4-liter Coyote-based V8 was designed, developed, assembled and tested in-house. The engine has now moved beyond the dyno and run in the actual race chassis with the hybrid system. That integration step matters because an engine that works by itself still has to communicate with the hybrid hardware, transmission, cooling package, chassis electronics and control software.
The next phase is track validation across Europe. Ford’s stated priorities include performance, reliability, hybrid integration and aerodynamic validation under conditions intended to simulate the demands of the FIA WEC and the 24 Hours of Le Mans.
There is an important distinction here: “Coyote-based” does not mean Ford installed a production Mustang engine with a few bolt-ons. The race engine shares a connection to Ford’s production architecture and performance programs, but its parts, operating environment and development targets are highly specialized. The useful takeaway is the engineering process, not the assumption that a street Mustang needs the same hardware.
Lesson 1: Define the Job Before Choosing the Parts
Ford did not begin with a random collection of high-flow components. The target was defined first: sustained endurance-racing performance, hybrid integration, reliability and a competitive 2027 WEC package. Every major decision can then be judged against that target.
The same rule applies to a Mustang build. A street car, drag car, road-course car and roll-racing setup may all use a Coyote engine, but they do not need the same camshaft, intake, exhaust, oil-control strategy or RPM range. A combination designed to make its best number above 8,000 rpm may be a poor choice for a heavy street car that spends most of its life below 5,000 rpm.
Before choosing cams or valvetrain parts, read our camshaft selection guide. Cam “stages” are not standardized. Duration, lift, lobe separation, installed position, converter, gearing and intended RPM matter far more than the label on the box.
SMG carries COMP Cams Coyote camshaft packages, valvetrain hardware and supporting parts, but the right selection should begin with the complete vehicle and its intended use.
Lesson 2: High-RPM Power Is an Oiling Problem Before It Becomes a Horsepower Problem
A Coyote’s ability to breathe at high RPM is one of its strengths. That capability also increases the consequences of poor oil control. Sustained engine speed can expose weaknesses in pump integrity, pickup control, oil temperature, drainback and bearing supply that may never appear during a short street pull.
For a typical Mustang, the correct solution depends on the generation, power level and use. A street car may need nothing more than the right oil, proper level and healthy factory hardware. A high-RPM or track-oriented build may justify upgraded pump components, improved cooling, baffling or a more comprehensive oiling strategy.
Relevant options include the Boundary Coyote billet oil-pump plate, complete 2011-2017 Coyote oil-pump assemblies and 2018-up Coyote oil-pump assemblies. These are not automatic requirements for every car, but they belong in the conversation when RPM, vibration and intended use justify them.
Lesson 3: Cooling Must Recover, Not Merely Survive One Pull
A car can produce an impressive first dyno number while still having an inadequate cooling system. The real test is whether coolant, oil and intake-air temperatures stabilize and recover during repeated loaded operation.
That distinction is especially important on road courses, half-mile events, repeated street pulls and boosted builds. A radiator, oil cooler, heat exchanger, fan package or ducting change should be evaluated as part of an airflow system. Bigger hardware is not automatically better if air cannot enter, pass through and exit efficiently.
The Mishimoto 2011-2014 Mustang GT oil-cooler kit is one example of a purpose-built upgrade for applications that generate more oil temperature than the factory package can comfortably manage. Browse additional Mustang cooling upgrades by vehicle and intended use.
Our article on summer heat soak and power loss explains why temperature recovery often matters more than the lowest temperature recorded at the beginning of a pull.
Lesson 4: Crankshaft Vibration Does Not Care About the Dyno Sheet
At sustained engine speed, the crankshaft, damper, oil pump, timing drive and rotating assembly are exposed to repeated torsional events. The engine may sound smooth while harmful vibration is still traveling through the system.
A properly matched harmonic damper helps control those oscillations. It does not add airflow or fuel, so it is easy to overlook during a horsepower-focused build. It can still be one of the most important durability components in the combination.
SMG offers Coyote damper options including the ATI OEM-size Coyote damper and other Coyote harmonic-damper configurations. The correct choice must match accessory requirements, pulley arrangement, engine generation and intended RPM.
Fastener quality also matters when cylinder pressure and engine speed rise. Examples include the ARP 2018-2020 Coyote head-stud kit and ARP Coyote cam-tower bolt kit.
Lesson 5: Fuel and Calibration Must Remain Stable Through the Entire Run
Endurance development is not centered on one brief peak-power event. Fuel pressure, lambda control, ignition stability, temperature compensation and sensor data all have to remain consistent as operating conditions change.
For a modified Mustang, the fuel system should be sized for the fuel being used, the actual horsepower target and the duty cycle. E85 requires more fuel volume than gasoline. Boost increases demand rapidly. A pump or injector that appears acceptable during a short test can become the first limit as temperature, voltage or ethanol content changes.
The Aeromotive 2010-2017 Mustang GT Stealth fuel system is one example of a complete system approach rather than an isolated pump swap. Our fuel-injector sizing guide explains how gasoline, ethanol and boost change the calculation.
Calibration is equally important. Read when performance modifications require tuning before assuming the factory strategy will safely adapt to major airflow, fuel or engine changes.
Lesson 6: Test the Combination Hot and Repeatedly
Ford’s move from simulation and dyno development to full-chassis track testing is the lesson that ties everything together. Component specifications are necessary, but they cannot fully predict how the assembled vehicle will behave under heat, vibration, braking, cornering and repeated load.
A useful validation process looks beyond peak horsepower. Watch oil pressure, fuel pressure, coolant temperature, oil temperature, intake-air temperature, knock response, lambda, ignition stability and recovery time. Repeat the test after the car is fully heat-soaked. Inspect the data for trends rather than waiting for a dramatic failure.
This is where NTHP’s Mainline ProHub dyno and performance diagnostic capability are valuable. A hub dyno provides controlled, repeatable loading without tire slip, allowing the team to evaluate more than a single wide-open-throttle number. The goal is to verify that the package behaves consistently and safely.
Build the System, Not Just the Engine
Ford’s 5.4-liter Hypercar program is interesting because it connects Coyote architecture to the highest level of endurance racing. Its most useful message for Mustang owners is simpler: repeatable power comes from a complete system.
Choose the operating range first. Support the engine with the correct oiling, cooling, damper, fuel system and calibration. Use quality fasteners and valvetrain components. Then test the vehicle under the conditions it will actually experience.
Ready to plan a Coyote build? Browse Coyote performance parts at SMG Speed Shop, or contact the SMG sales team for help matching components to your Mustang. Customers near DFW can work with North Texas High Performance for installation, diagnostics, dyno testing and calibration support.
