150 Years Later, Stanadyne Is Still Chasing More Fuel: What the RGX Means for High-Horsepower GM LTx Builds

Modern GM direct-injected performance has a simple way of exposing a weak fuel system: add airflow, add ethanol, add boost, and the high-pressure side suddenly becomes the limit. That makes Stanadyne's 150th anniversary more than an industry-history footnote. The company that traces its roots to 1876 is now selling purpose-built high-output gasoline direct-injection hardware aimed directly at the kind of LT1, LT4 and other GM LTx combinations that keep moving beyond factory fuel-system capacity.

Performance Racing Industry recently highlighted Stanadyne's 150-year milestone, while Stanadyne's own history shows how far the company has moved from early precision manufacturing into modern fuel delivery. Its timeline includes the first diesel rotary pump in the 1950s, electronic rotary-pump development in the 1990s, entry into racing-oriented high-capacity GDI hardware in 2013, and a one-million-unit milestone for 200-bar gasoline direct-injection pumps in 2025.

The part that matters now: direct injection needs pressure and volume

On a port-injected engine, enthusiasts tend to think about fuel-system capacity in terms of pump flow, injector size and base pressure. A modern direct-injected LTx engine adds another major layer. The low-pressure system has to keep the high-pressure pump supplied, the mechanically driven high-pressure pump has to create the commanded rail pressure, and the direct injectors have to deliver the required mass of fuel inside a very short injection window.

That means a single "horsepower rating" is never the whole story. A larger high-pressure pump does not repair a weak low side. A strong low side does not make undersized direct injectors bigger. And neither one can compensate for a calibration that is asking the system to do something the hardware cannot sustain.

We covered that interaction in more detail in Your Fuel System Isn't One System: Why Boosted LT1/LT4 Builds Run Out of Fuel. The short version is that a serious LTx build has to be treated as a complete fuel-delivery chain, not as one pump upgrade.

What makes the Stanadyne RGX different?

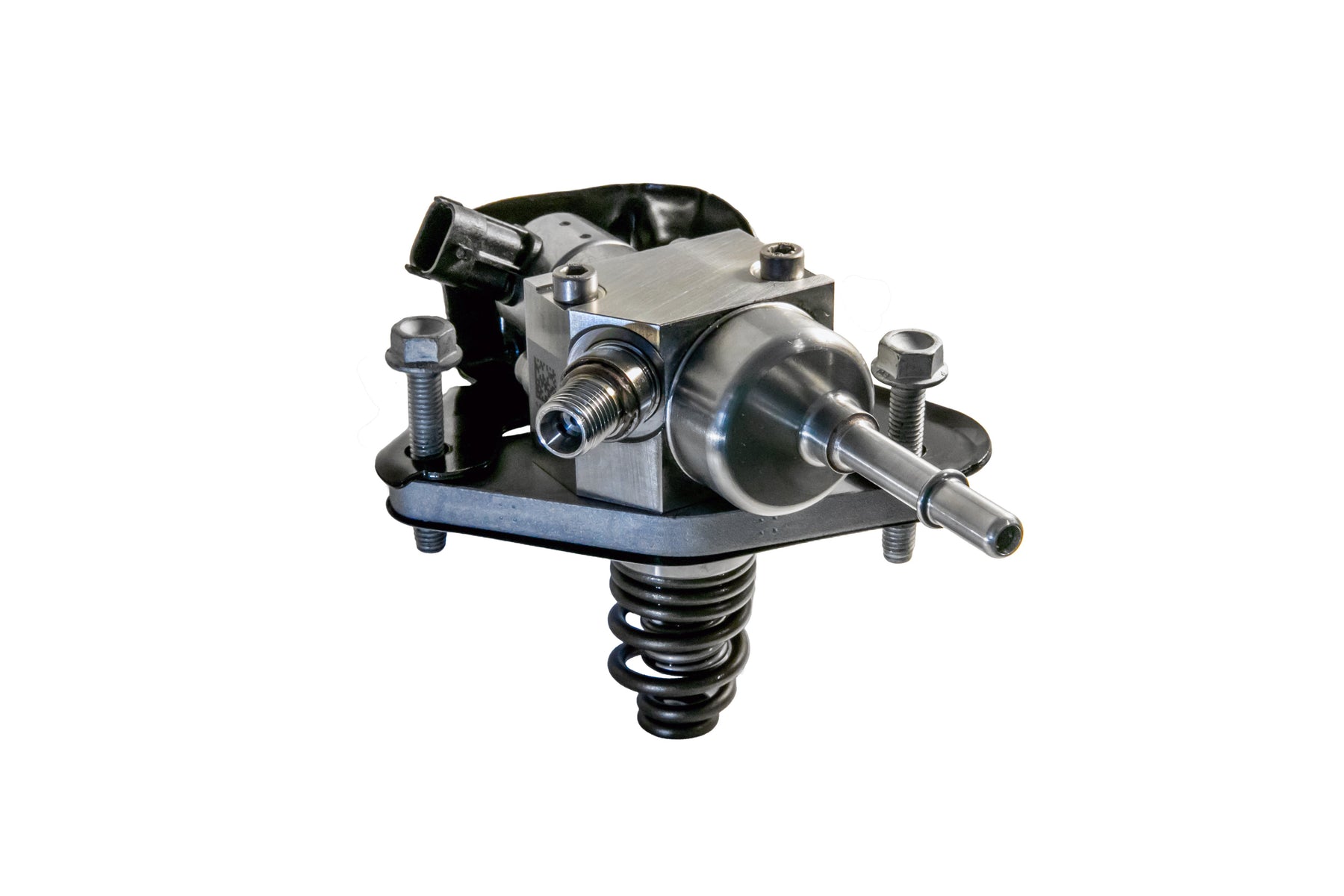

Stanadyne introduced its GX family as purpose-built performance GDI pumps rather than modified production service pumps. The RGX, or Race Grade Extreme, is the more aggressive version of that architecture. Stanadyne describes it as a 12mm-plunger, high-lift design intended for high-output motorsports and racing applications.

According to Stanadyne's own engineering figures, the 12mm high-lift architecture can provide roughly 50 percent more fuel volume than its SP1250 platform and about 22 percent more than its SP1550 at comparable pressures. Those are manufacturer figures, not an independent chassis-dyno comparison, but they explain the direction of the design: more usable high-side volume without treating a factory pump as the starting point.

For GM LTx customers, SMG currently offers the Stanadyne RGX 12mm High-Pressure Fuel Pump for GM LTx. For combinations that do not require the maximum RGX architecture, the Stanadyne 11.5mm High-Pressure Fuel Pump for GM LTx provides another high-side option.

The pump is only one half of the high-pressure side

A high-pressure pump can create more available fuel volume, but the injectors still have to put that fuel into the cylinder. That becomes especially important as boost rises, engine speed increases or the calibration moves toward ethanol-rich fuel.

SMG also carries the Stanadyne 7.45mm High-Flow LT4 Direct Fuel Injector for applications where injector capacity is part of the constraint. Pump and injector selection should be matched to the actual engine combination, fuel, power target and calibration strategy rather than selected from one advertised flow number.

That is also why injector discussions need more context than a single cc/min or percentage figure. Our guide A 1000cc Injector Is Not Always a 1000cc Injector explains how pressure, fuel type, characterization and operating conditions change what an injector can actually support.

E85 makes fuel-system headroom disappear faster

Ethanol is popular for boosted LTx combinations for good reasons, including knock resistance and charge-cooling benefits, but an ethanol-rich blend also requires more fuel volume for a given amount of air than gasoline. That additional demand has to pass through every stage of the system.

This is where a combination that appears comfortable on gasoline can run out of high-side capacity much earlier after an E85 conversion. The correct answer is not to assume that a pump or injector has one universal horsepower ceiling. The answer is to log the system at the fuel blend and load the car actually sees.

For more on why fuel blend changes the numbers tuners should watch, read Stop Tuning by AFR Alone: Lambda, E85 Content and Wideband Errors Explained.

What should be logged after a high-pressure fuel upgrade?

After installing higher-capacity direct-injection hardware, the useful question is not simply whether the car starts and idles. Under load, the calibration and logs need to show whether the entire system can maintain what the engine is being commanded to use.

• Low-side pressure: the high-pressure pump cannot create fuel that is not being supplied to it.
• Commanded versus actual rail pressure: a widening gap under load is a warning that the high side is falling behind.
• Injector operating margin: higher pressure alone does not solve an injector that has reached its useful delivery window.
• Lambda: the engine still has to achieve the commanded mixture when airflow and load increase.
• Ethanol content: the blend in the tank changes the amount of fuel the system must deliver.

A clean dyno pull is useful because it lets those channels be reviewed together under controlled load. It is much more informative than choosing parts from a theoretical horsepower number and hoping every part of the fuel system has equal headroom.

Where NTHP fits into the process

North Texas High Performance can handle the installation, system inspection, calibration and dyno validation side of the equation for appropriate GM performance applications. The goal is not simply to bolt on the largest pump available. It is to make sure the low side, high-pressure pump, injectors, fuel blend and tune operate as one system.

That becomes even more important on supercharged and turbocharged builds where the margin can disappear quickly as airflow rises. NTHP's Mainline ProHub dyno gives the shop a controlled way to load the vehicle, watch fuel pressure and lambda behavior, and verify that the hardware is actually supporting the calibration.

150 years of history, but the relevant question is what it supports today

Stanadyne's anniversary is interesting because it connects an unusually long manufacturing history to one of the newest challenges in performance tuning. Direct injection has raised the pressure, precision and control requirements for fuel systems, and modern boosted GM engines can reach those limits surprisingly quickly.

If your LT1, LT4 or other compatible GM LTx build is approaching the high-side limit, the right next step is to size the system around the complete combination. Shop the Stanadyne RGX 12mm pump, the 11.5mm LTx pump and the 7.45mm LT4 direct injectors at SMG Speed Shop, or contact North Texas High Performance for installation, tuning and dyno validation in North Texas.

Industry sources: Performance Racing Industry: Stanadyne Celebrating 150 Years of Innovation in 2026 and Stanadyne: New GX Series Fuel Pumps Built for Elite Street & Race Performance.
